点击放大查看

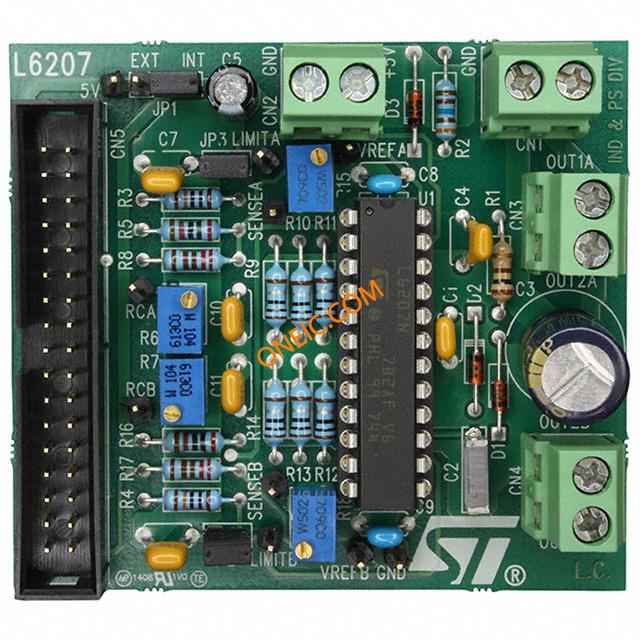

EVAL6207N
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board For Highly Integrated, Mixed-Signal Power ICs Power Management IC Development Tools EVAL L6207N DMOS Dual Bridge Driver EvalBoard L6207N 2xH-Br _NO ROHS BOARD MOTOR STEPPER/DC L6207 DIP L6207N, FULL BRIDGE DRIVER, PWM CNTLR, EVAL BOARD |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Power Management Development Tools |
| 单位包装 | 1 | 其他名称 | 497-4934 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85371099 |
| 汽车级 | NO | 无铅定义 | Leaded |
电气参数
| 额定电压 | 5 V | 元件数量 | :L6207N |
机械参数
| 重量 | 0.000001 | 包装方式 | Bulk |
| 封装形式 | EvalBoard | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 套件类型 | :Driver - Transistor |
| 匹配码 | EVALL6207N | 主要用途 | Power Management, Motor Control |
| 标准交期 | 10 weeks | 工具类型/特性 | ST72F264 |
| 主要特性 | 1 ~ 4 DC Motors or 1 Stepper Motor | 射频系列/标准 | L6207 |
| 使用的IC/零件 | L6207 | 芯片组制造商 | :STMicroelectronics |
| 次要特性 | Short-Circuit and Thermal Protection | 应用细节 | EvalBoard |
| 支持MCU系列 | :L6207N | ||
相关型号

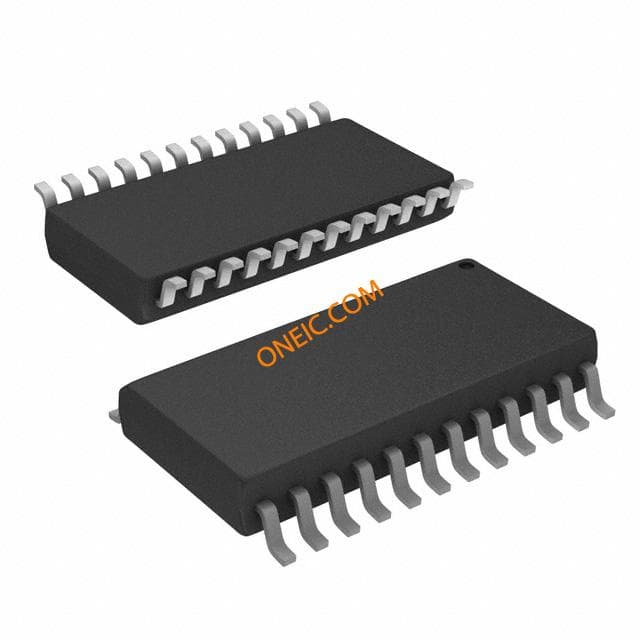

L6207D013TR
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 24-Pin SO T/R 2xH-Br 2.8A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SOIC Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge
EVALPRACTISPIN
stmicroelectronics
L6235 DMOS Driver For Three-Phase Brushless DC Motor Evaluation Board Power Management IC Development Tools PractiSpin Eval Brd L62xx Family EVALUATION BOARD PRACTISPIN INTERFACE BOARD, MOTOR CONTROL, PRACTISPIN

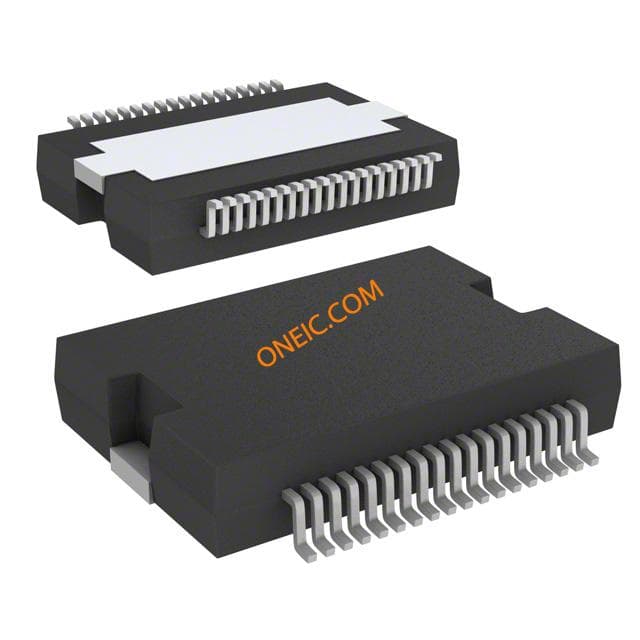

L6207PD
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 36-Pin PowerSO Tube 2xH-Br 2.8A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6207PD, Full Bridge Motor Driver, Full Bridge PWM, 8 to 52V, 36-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge MOTOR DRIVER, DUAL, DMOS, 5.6A, 36PWRSO IC,L6207PD Driver; full bridge; 2.8A; Channels:2; SO36 Bridge Driver IC PowerSO-36, L6207PD, ST STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 2.8A, 8 → 52 V
L6207D
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 24-Pin SO Tube Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge 2xH-Br 2.8A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SOIC L6207D, Full Bridge Motor Driver, Full Bridge PWM, 8 to 52V, 24-Pin SOIC MOTOR DRIVER, DUAL, DMOS, 5.6A, 24SOIC IC,L6207D STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 2.8A, 8 → 52 V
L6207PD013TR
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 36-Pin PowerSO T/R Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge 2xH-Br 2.8A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6207PD013TR, Full Bridge Motor Driver, Full Bridge PWM, 8 to 52V, 36-Pin PowerSO IC,L6207PD013TR STMicroelectronics 电机驱动器 IC , 用于刷式直流, 2.8A, 8 → 52 V

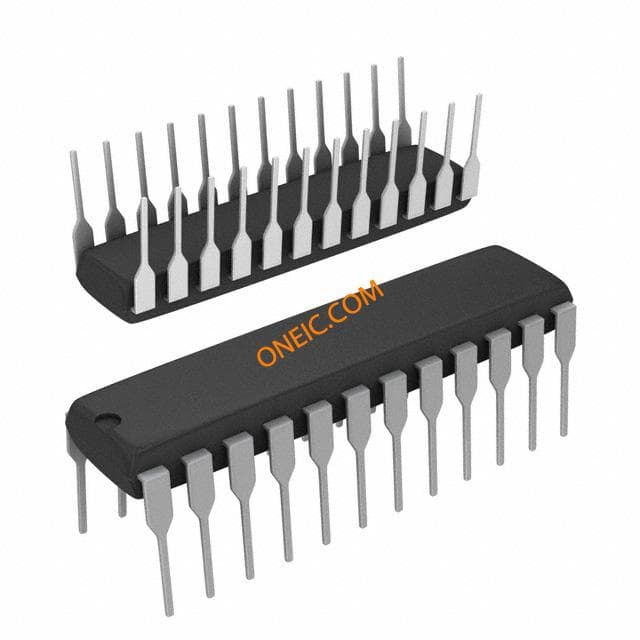

L6207N
stmicroelectronics
DMOS Full Bridge PWM Motor Driver 48V 24-Pin Power PDIP Tube 2xH-Br 2.8A 52V DIP-24 THT IC MOTOR DRIVER PAR 24POWERDIP L6207N, Full Bridge Motor Driver, Full Bridge PWM, 8 to 52V, 24-Pin Power PDIP Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge MOTOR DRIVER, DUAL, DMOS, 5.6A, 24DIP DMOSDualFullBridgeDriverwithPWM STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 2.8A, 8 → 52 V
