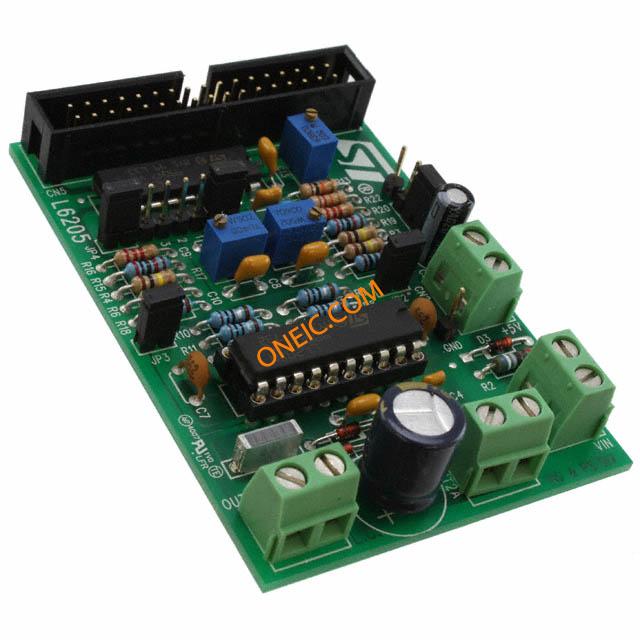

EVAL6205N
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board For L6205, L6206, L6207 Dual Full Bridge Drivers Power Management IC Development Tools EVAL BOARD FOR L6205N EvalBoard L6205N 2xH-Br _NO ROHS EVAL BOARD FOR L6205N DIP L6205, FULL BRIDGE DRIVER, DMOS, EVALUATION BOARD |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Power Management Modules |
| 单位包装 | 1 | 其他名称 | 497-5486 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85371099 | 汽车级 | NO |
| 无铅定义 | Leaded | ||
电气参数
| 额定电压 | 5 V | 元件数量 | :L6205 |
机械参数
| 重量 | 0.00001 | 包装方式 | Bulk |
| 封装形式 | EvalBoard | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 套件类型 | :Driver - Transistor |
| 匹配码 | EVAL6205N | 主要用途 | Power Management, Half H-Bridge Driver (Internal FET) |
| 标准交期 | 10 weeks | 工具类型/特性 | L6205 |
| 主要特性 | 2 Half H-Bridge Drivers, 5.6A, Up to 100KHz | 使用的IC/零件 | L6205N DIP |
| 芯片组制造商 | :STMicroelectronics | 次要特性 | Parallelable, Thermal Shutdown, Shoot Through Protection |
| 应用细节 | EvalBoard | 支持MCU系列 | :L6205N |
