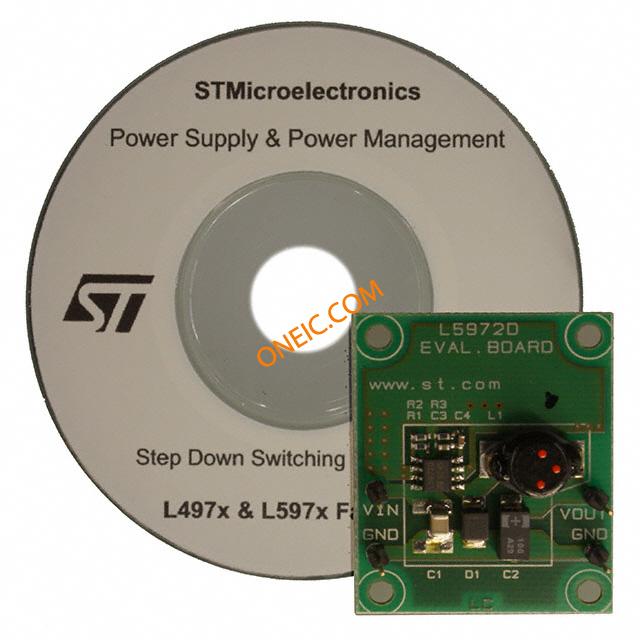

EVAL5972D
| 制造商 | |
| 描述 | L5972D Up To 2A Step Down Switching Regulator Evaluation Power Management IC Development Tools Eval Board for L5972 BOARD EVAL FOR L5972D SW REG L5972D, SWITCHING REGULATOR, STEP DOWN, DEMO BOARD |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | No | 欧盟RoHS | Not Compliant |
| 海关税号 | 84735080 | ||
电气参数
| 额定电压 | 4.4 V to 36 V | 输出电流 | 1.8A |
| 元件数量 | :L5972D | 稳压器拓扑 | Buck |
| 开关频率 | 250kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0.000001 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | 尺寸/外形 | 42 mm x 34 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 套件类型 | :Power Management - Voltage Regulator | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | L5972D |
| 射频系列/标准 | L5972D | 使用的IC/零件 | L5972 |
| 芯片组制造商 | :STMicroelectronics | 应用细节 | :Step Down DC/DC Converter |
文档与媒体
相关型号
L5972D013TR
stmicroelectronics
Conv DC-DC Single Step Down 4.4V to 36V 8-Pin SO N T/R DC-DC 36V 2.0A D SO-8 SMD IC REG BUCK ADJ 2A 8SOIC Voltage Regulators - Switching Regulators 1.235 to 35V Step-Dn Switching Voltage Regulators 1.235 to 35V Step-Dn
L5972D
stmicroelectronics
Conv DC-DC Single Step Down 4.4V to 36V 8-Pin SO N Tube DC-DC 36V 2.0A D SO-8 SMD IC REG BUCK ADJ 2A 8SOIC L5972D, Switching Regulator, Buck Controller, 1.5A, Adjustable, 1.235 to 35V, 275kHz, 8-Pin SO Voltage Regulators - Switching Regulators 1.235 to 35V Step-Dn IC, BUCK REG, SMD, 5972, SOIC8 SwitchingRegulator;Step-Down;Iimax3A;VCC4.4to36V;SO-8 DC-DC converter; step down; Uin:4.4÷36V; Uout:1.2÷35V; 2A; SO8 Switching controller IC SO-8, L5972D, ST STMicroelectronics 降压 开关稳压器, 1.5A, 可调输出, 1.235 → 35 V, 275 kHz, 8针 SOIC封装 Switching Voltage Regulators 1.235 to 35V Step-Dn
