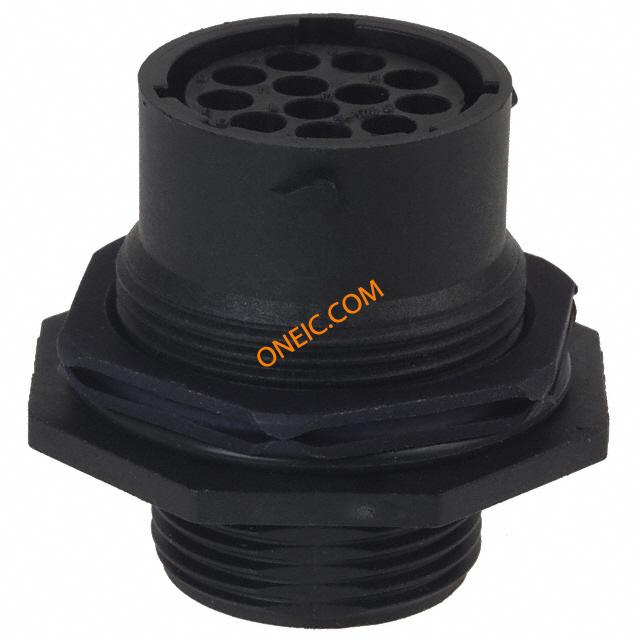

点击放大查看
UTS71412S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 12P Sckt Receptacle Jam Nut Size 14 Conn CPC SKT 12 POS Crimp ST Jam Nut 12 Terminal 1 Port CONN RCPT 12X1.6 FEMALE JAM NUT 12 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts RECEPTACLE, JAM NUT, SIZE14, 12WAY, SKT connector,plasticcirc,size14,jamnutrecept,for12size16socketcont,sealed Panel Mount Sockets UTS Trim Trio UTS 12P Female 14, UTS71412S, Souriau Souriau 12路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1285 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 认证机构 | :UL, VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 测试电压 | :2000V | 额定电压 | 125 V ac |
| 最大额定电流 | 13A | 绝缘电阻 | :5000Mohm |
机械参数
| 深度 | 34.9 | 高度 | 34.9 |
| 重量 | 0.018 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 14 |
| 方向 | Keyed | 外壳样式 | Jam Nut |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | 12Signal | 安装类型 | Jam Nut |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 14-12 | 本体材料 | :Thermoplastic |
| 总长度 | 33.9 | 第一触头极性 | SKT |
| 连接器颜色 | :Black | 触点数 | 12 |
| 面板开孔形状 | :25.7mm | 位数 | 12 |
| 外壳尺寸-插件 | 14-12 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Panel | 外壳尺寸-插入件（转换至） | 14-12 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | UTS |
| 产品特性 | Cap (Cover), Dust | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles | ||
环境参数
| 插拔次数 | :250 | NEMA 机架尺寸 | :IP68, IP69K |
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | +105°C |
