点击放大查看

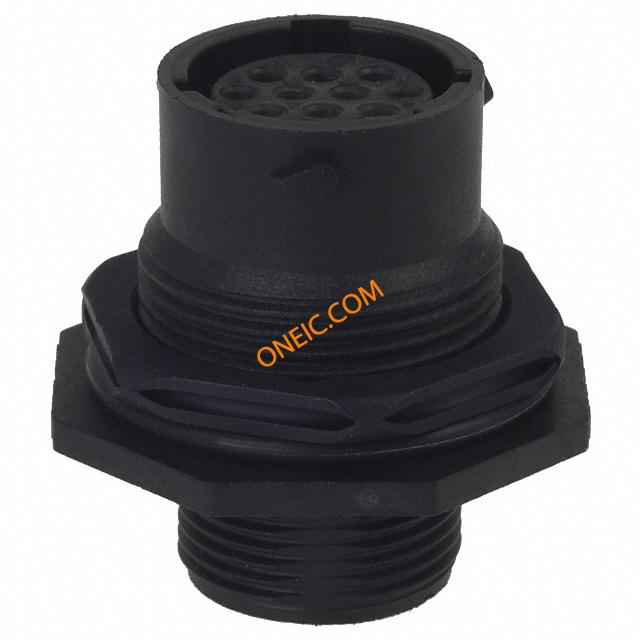

UTS71210S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 10P Strt Socket Plug Jam Nut Size 12 10P JAM NUT FEMALE SHELL12 CONN RCPT 10X1.0 FEMALE JAM NUT 10 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts connector,plasticcirc,size12,jamnutrecept,for10size20socketcont,sealed Panel Mount Sockets UTS Trim Trio UTS 10P Female 12, UTS71210S, Souriau Souriau 10路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 最小起订量 | 1 | 商标名 | Trim Trio |
| 单位包装 | 25 | 其他名称 | SOU1287 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 认证机构 | UL94V-0 |
| 保护特性 | 68/69K | ||
电气参数
| 额定电压 | 125 V ac | 最大额定电流 | 5 A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 12 |
| 导线线规 | 13 | 方向 | CRIMP |
| 外壳样式 | Jam Nut | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | PLASTIC |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 12-10 |
| 端接样式 | FEMALE | 第一触头极性 | Female |
| 触点数 | 10 | 位数 | 10 |
| 外壳尺寸-插件 | 12-10 | 外壳材料及表面处理 | Thermoplastic |
| 典型触点布局 | RECEPTACLE | 触点材料 - 镀层 | -40 TO 105 |
产品信息
| 备注 | Contacts Not Provided | 类型 | 22.5 |
| 连接器性别 | Female | 系列 | TRIMTRIO |
| 产品特性 | Cap (Cover), Dust | 匹配码 | UTS71210S |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles |
| 附件类型 | STRAIGHT | 标准交期 | 7 weeks |
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | BAYONET°C |
