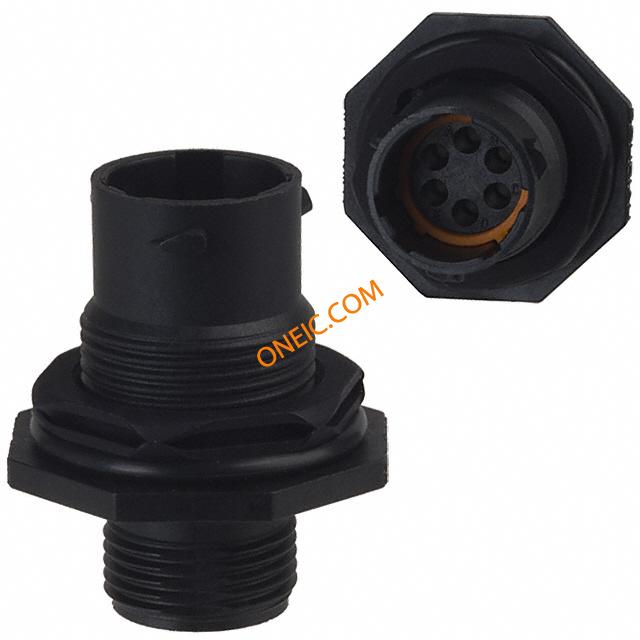

UTS7106P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 6P Straight Pin Plug Jam Nut Size 10 CONN RCPT 6X1.0 MALE JAM NUT 6 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts RECEPTACLE, JAM NUT, SIZE10, 6WAY, PIN connector,plasticcirc,size10,jamnutrecept,for6size20pincont,sealed Panel Mount Plug UTS Trim Trio UTS 6P Male 10, UTS7106P, Souriau Souriau 6路 面板安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1290 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 测试电压 | :2000V | 额定电压 | 125 V ac |
| 最大额定电流 | 5 A | 绝缘电阻 | :5000Mohm |
机械参数
| 重量 | 0.01 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 方向 | Keyed |
| 外壳样式 | Jam Nut | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 10-6 |
| 本体材料 | :Thermoplastic | 第一触头极性 | Male |
| 连接器颜色 | :Black | 触点数 | 6 |
| 面板开孔形状 | :17.7mm | 位数 | 6 |
| 外壳尺寸-插件 | 10-6 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles |
环境参数
| 插拔次数 | :250 | NEMA 机架尺寸 | :IP68, IP69K |
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | +105°C |
文档与媒体
相关型号
RMW5016K
Souriau
Standard Circular Contacts CIR CON ML SLDR DIP CONT CONTACT PIN SOLDER GOLD SIZE 20
RM20W3K
Souriau
Standard Circular Contacts MALE CRIMP CONTACT AWG 20 CONTACT PIN CRIMP 20-22AWG GOLD PIN CONTACTS SIZE 20 - 0.35-0.5 MM2 CIRCULAR CONTACT, PIN, 22-20 AWG, CRIMP PINCONTACTSSIZE20-0.35-0.5MM2 Male contact 0.35...0.5 mm² Male, RM20W3K, Souriau Souriau UT0W 系列 7.5A 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24W-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 CONTACT PIN CRIMP 24-26AWG GOLD

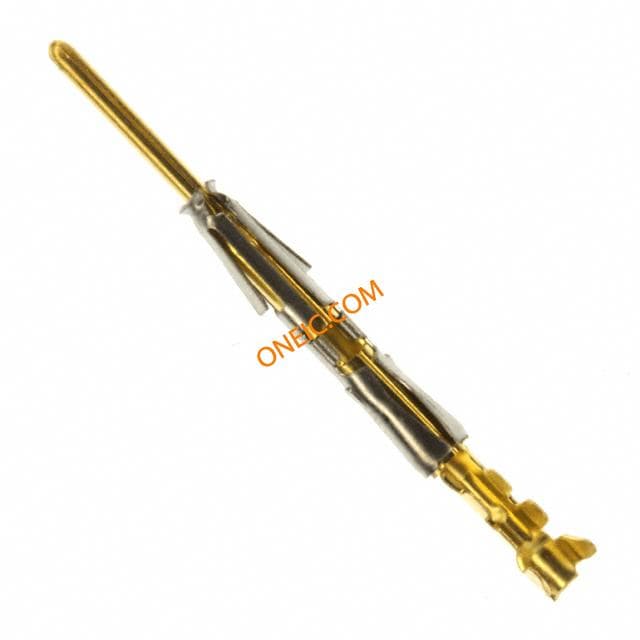

SM24WL-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincont,size20,for26-24awgwire Contact;Pin;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSMSer;Gold

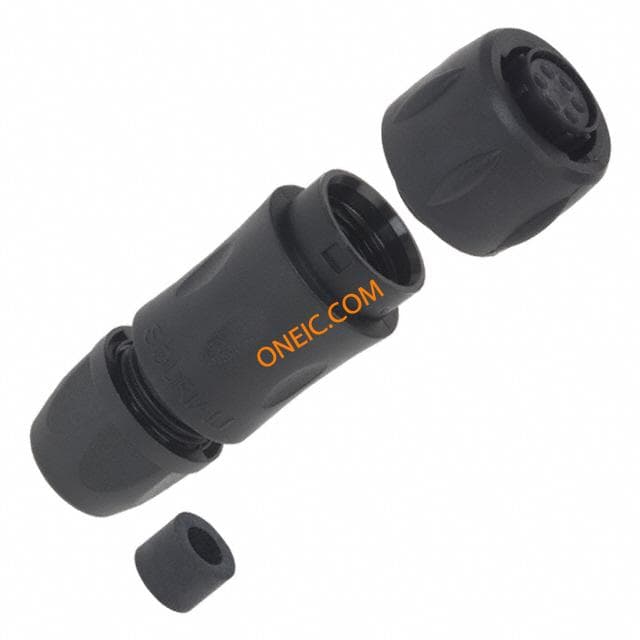

UTS6JC106S
Souriau
Standard Circular Connector 6P Strt Socket Plug Backshell Size 10 CONN PLUG CABLE 6X1.0 FEMALE 6 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 10 with Female Contacts UTS Series connector,plasticcirc,size10,strplugw/bkshl,for6size20socketcont,sealed Kupplungsstecker UTS Trim Trio UTS 6P Female 10, UTS6JC106S, Souriau Souriau UTS 系列 6路 电缆安装 直向 连接器 插头 , 母触点
UTS710CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 10, Red CONN RCPT CODING RING SIZE10 RED RECEPTACLE COLOR CODING SIZE 10 - RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize10,red Coding ring for receptacles size 10, UTS710CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 10
UTS710CCRY
Souriau
Standard Circular Connector Receptacle Ring Shell Sz 10, Yellow CONN RCPT CODING RING SIZE10 YEL RECEPTACLE COLOR CODING SIZE 10 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,receptsize10,yellow Coding ring for receptacles size 10, UTS710CCRY, Souriau

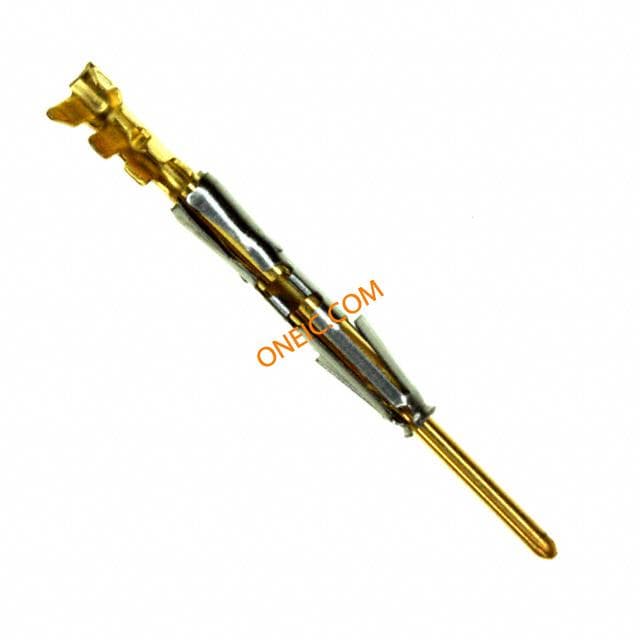

SM20WL-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 20 AWG Contact Sz 20 CONTACT PIN CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size20,22-20awgwire Contact;Pin;Stamped;Sz20;Crimp;22-20AWG;TrimTrioSMSer;Gold
SM20WL3TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 20 AWG Contact Sz 16 CIRCULAR CONTACT, PIN, 22-20 AWG, CRIMP
UTS10DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 10 CONN RCPT SEALING CAP SIZE 10 UTS RECEPTACLE DUSTCAP - SIZE 10 Connector Accessories Receptacle Sealing Cap Shell Size 10 connectoraccessory,dustcapforsize10uts-seriesreceptacle Cap for receptacles size 10, UTS10DCG, Souriau
UTS710CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 10, Green CONN RCPT CODING RING SIZE10 GRN RECEPTACLE COLOR CODING SIZE 10 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize10,green Coding ring for receptacles size 10, UTS710CCRG, Souriau
RM24W3K
Souriau
Standard Circular Contacts MALE/PIN MACHINE CONTACT UT0W Series Size 20 7.5A Male Circular Connector Contact, Crimp,Wire size 26 to 24AWG CONTACT PIN, UT0W, 26-24AWG Male contact 0.13...0.25 mm² Male, RM24W3K, Souriau Souriau UT0W 系列 7.5A 公 压接端接 圆形 连接器 触芯, 使用于Trim Trio 连接器, 26 → 24 AWG 线规格

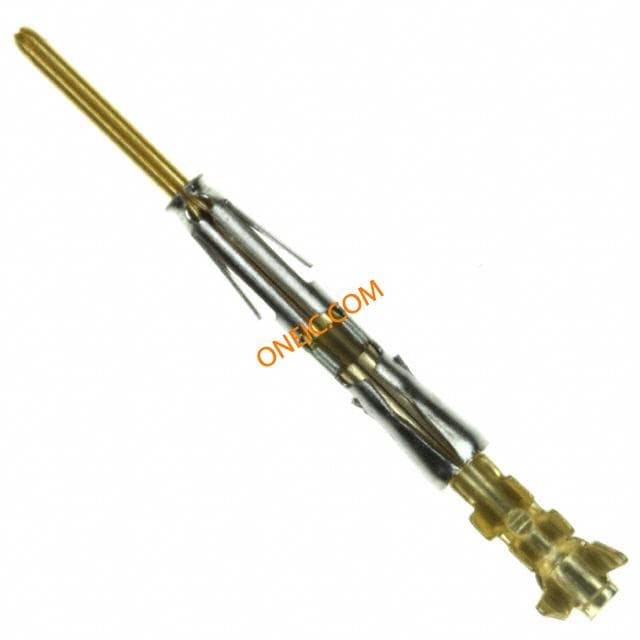

SM20W-3S26
Souriau Connection Technology
CONTACT PIN CRIMP 20-22AWG GOLD

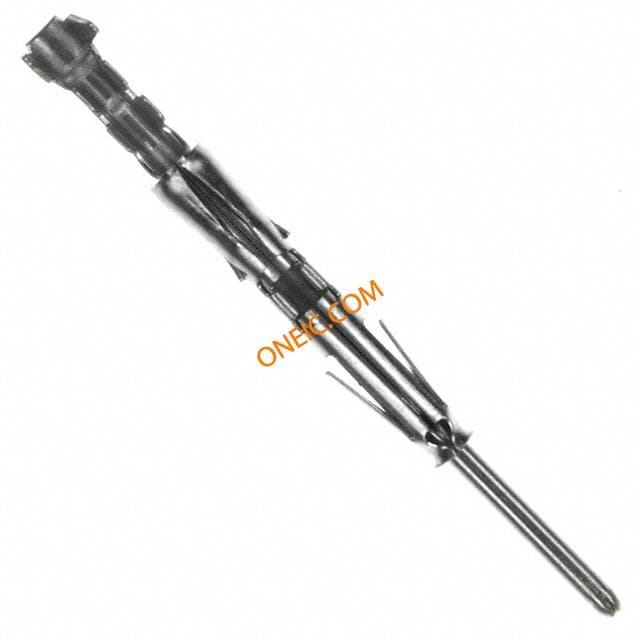

SM24WL-3TK6
Souriau Connection Technology
CONTACT PIN CRIMP 24-26AWG TIN connectorcomponent,stampedandformedcrimppincont,size20,for26-24awgwire Contact;Pin;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSMSer;TinPlate

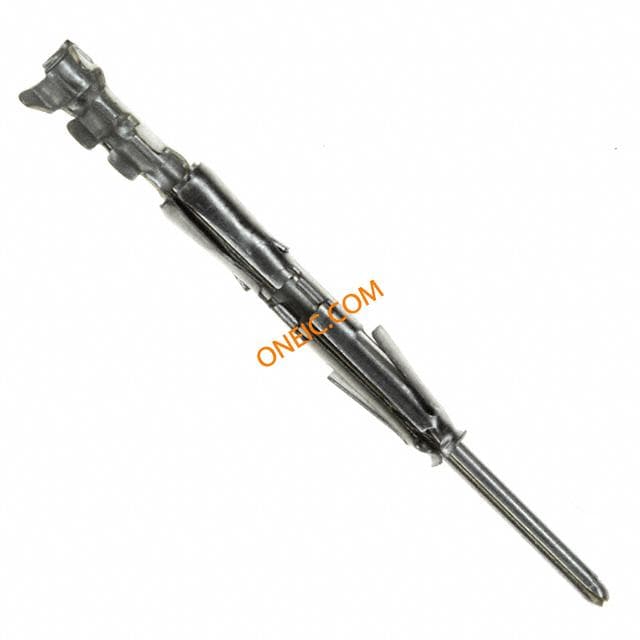

SM20WL-3TK6
