点击放大查看

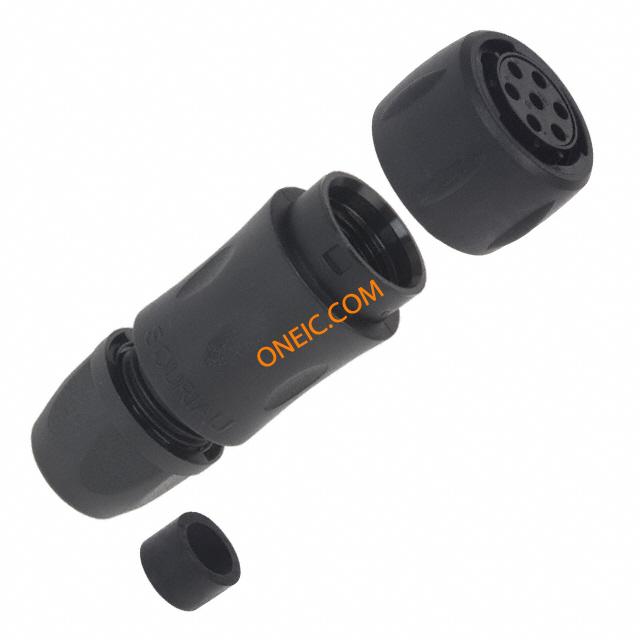

UTS6JC147S

制造商	SOURIAU SAS
描述	Standard Circular Connector 7P Strt Socket Plug Backshell Size 14 Conn CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CONN PLUG CABLE 7X1.6 FEMALE 7 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts connector,plasticcirc,size14,strplugw/bkshl,for7size16socketcont,sealed Kupplungsstecker UTS Trim Trio UTS 6+PEP Female 14, UTS6JC147S, Souriau Souriau 7路电缆安装直向连接器插头 , 母触点
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

商标名	Trim Trio	其他名称	SOU1312
产品类别	Standard Circular Connector	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压	250 V ac	极数	6+PE
最大额定电流	13A	保护电压（VP）（2416）	IP 68/69 K

机械参数

外形尺寸(长x宽)	14	直径	34.6
包装方式	Bulk	壳体颜色	71.5
出线方向	No	外壳尺寸	14
方向	Keyed	端接方式	Crimp
触点尺寸	16	触头类型	6Signal/1Ground
安装类型	Cable Mount	电缆端类型	5...14 mm
连接器类型	Plug for Female Contacts	紧固类型	Bayonet Lock
安装样式	Wire	外壳材料（壳体）	Thermoplastic
连接器样式	straight	插入角度	14-7
锁定特性	Bayonet locking	触头材料	CuNi+Au
壳体材料	Plastic	总长度	71.5
端接排数	压接	端接样式	Crimp Connection
第一触头极性	SKT	触点数	7
位数	7	外壳尺寸-插件	14-7
第一连接器极性	Female	外壳材料及表面处理	Thermoplastic
外壳尺寸-插入件（转换至）	14-7

产品信息

备注	Contacts Not Provided	类型	CPC
连接器性别	PL	系列	UTS
产品子类型	Plugs	放大器类型	34.6

环境参数

防护等级

IP68/69K - Dust Tight, Waterproof

工作温度

+105°C
