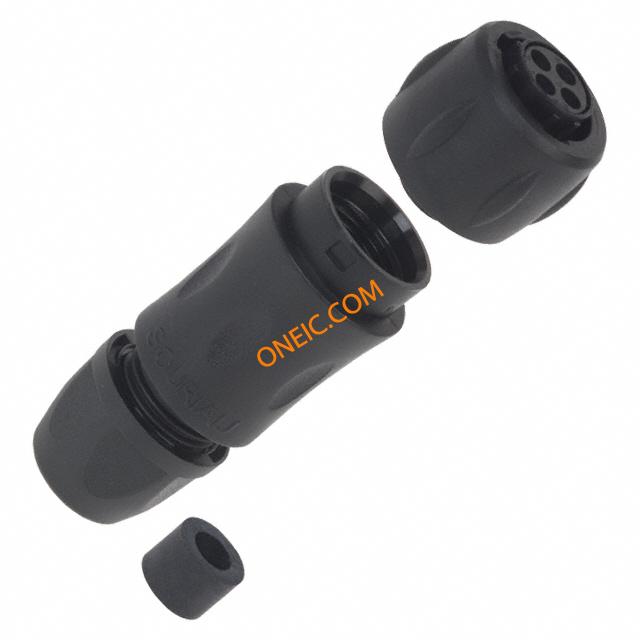

UTS6JC104S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Strt Socket Plug Backshell Size 10 Conn CPC SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN PLUG CABLE 4X1.6 FEMALE 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 10 with Female Contacts UTS Series connector,plasticcirc,size10,strplugw/bkshl,for4size16socketcont,sealed Kupplungsstecker UTS Trim Trio UTS 4P Female 10, UTS6JC104S, Souriau Souriau UTS 系列 4路 电缆安装 直向 连接器 插头 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1307 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 125 V ac | 极数 | 4 |
| 最大额定电流 | 13A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 外形尺寸(长x宽) | 10 | 直径 | 26.2 |
| 包装方式 | Bulk | 壳体颜色 | 63.2 |
| 出线方向 | No | 外壳尺寸 | 10 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | 4Signal |
| 安装类型 | Cable Mount | 电缆端类型 | 2.5...8 mm |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | straight | 插入角度 | 10-4 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Thermoplastic | 总长度 | 63.2 |
| 端接排数 | 压接 | 端接样式 | Crimp Connection |
| 第一触头极性 | SKT | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 10-4 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Thermoplastic |
| 外壳尺寸-插入件（转换至） | 10-4 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | UTS |
| CAD图纸 | 3D CAD Model | 产品子类型 | Plugs |
| 放大器类型 | 26.2 | ||
环境参数
| 密封等级 | IP68, IP69K | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +105°C | ||
