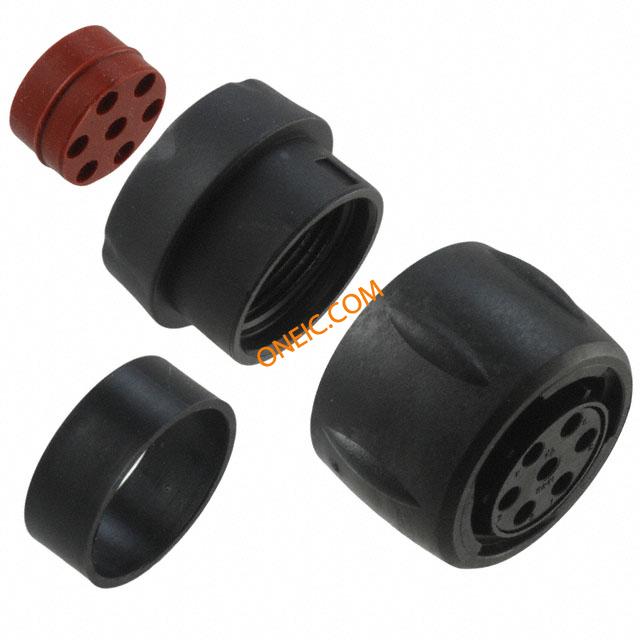

UTS6GN147S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 7P STRAIGHT SOCKET PLUG SHELL SIZE 14 CONN PLUG CABLE 7X1.6 FEMALE |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1733 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 V | 最大额定电流 | 10 A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 14 |
| 方向 | Keyed | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 14-7 |
| 第一触头极性 | Without Socket Contacts | 触点数 | 7 |
| 位数 | 7 | 外壳尺寸-插件 | 14-7 |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | UTS |
| 产品子类型 | Plugs | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | ||
