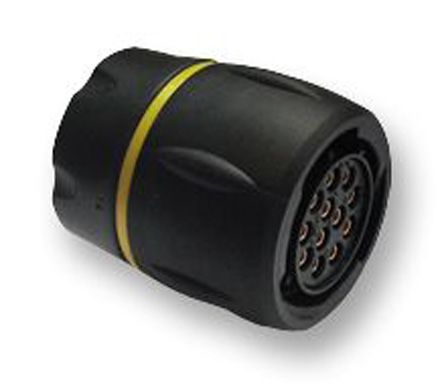

UTS6GN104S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P STRAIGHT SOCKET PLUG SHELL SIZE 10 CONN PLUG CABLE 4X1.6 FEMALE PLUG, WIRE SEAL, SIZE10, 4WAY, SKT Souriau UTS 系列 4路 电缆安装 直向 圆形连接器 插头 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1731 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 500 V | 最大额定电流 | 10 A |
机械参数
| 重量 | 0.015 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 方向 | Keyed |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Bayonet Lock | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 10-4 | 第一触头极性 | Without Socket Contacts |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | 10-4 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Socket |
| 系列 | UTS | 产品子类型 | Plugs |
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | ||
