点击放大查看

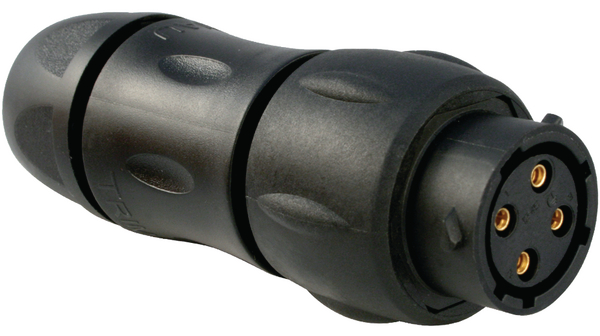

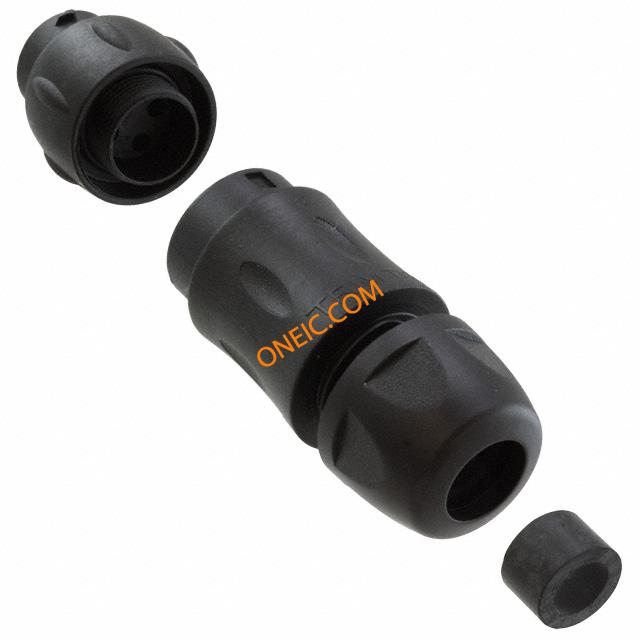

UTS1JC124S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Sckt Recept Sz 12 Cable Mnt Backshell CONN RCPT IN-LINE 4POS W/O SCKT Cable Socket Trim Trio UTS 3+PEP Female 12, UTS1JC124S, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1628 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 500 V | 极数 | 3+PE |
| 最大额定电流 | 10 A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 12 |
| 方向 | Keyed | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 电缆端类型 | 3...12 mm | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | In-Line |
| 外壳材料（壳体） | Thermoplastic | 连接器样式 | straight |
| 插入角度 | 12-4 | 锁定特性 | Bayonet locking |
| 壳体材料 | Thermoplastic | 端接样式 | Crimp Connection |
| 第一触头极性 | Without Socket Contacts | 连接器颜色 | black |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | 12-4 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | UTS |
| 产品特性 | Cap (Cover), Dust | 产品子类型 | Receptacles |
环境参数
| 防护等级 | IP 68, IP 69 | 工作温度 | -40...+105 °C |
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau

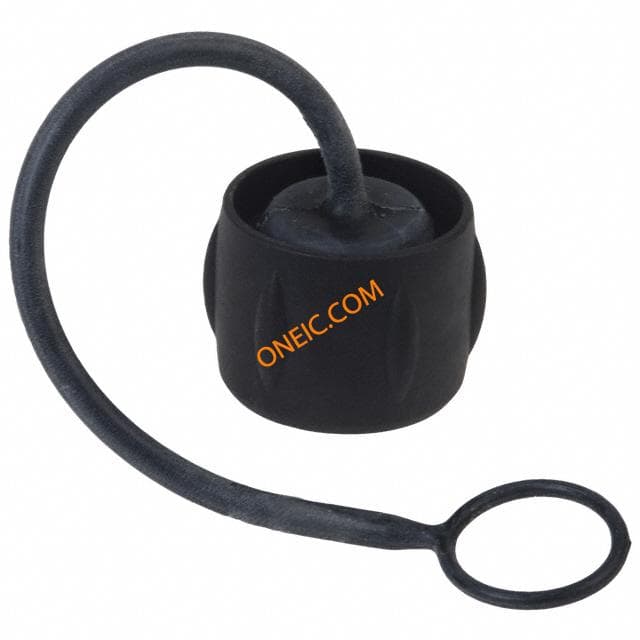

UTS12DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 12 CONN RCPT SEALING CAP SIZE 12 UTS RECEPTACLE DUSTCAP - SIZE 12 DUST CAP, RECEPTACLE, SIZE12 connectoraccessory,dustcapforsize12uts-seriesreceptacle Cap for receptacles size 12, UTS12DCG, Souriau

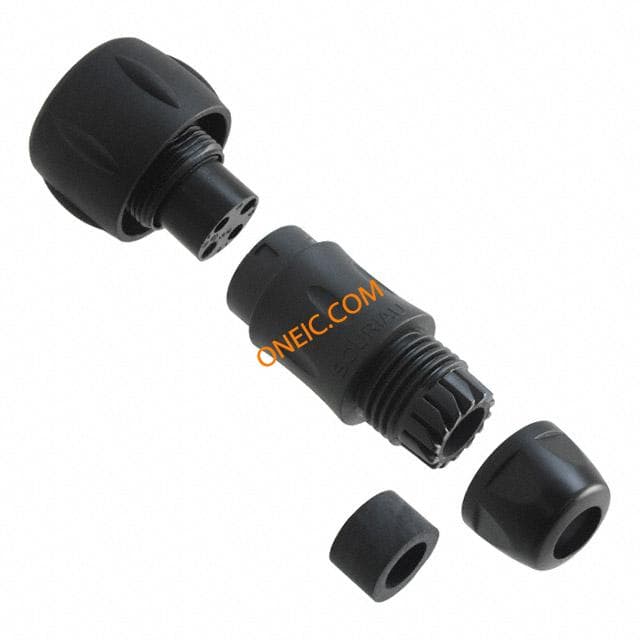

UTS6JC124P
Souriau
Standard Circular Connector 14P Strt Pin Plug Backshell Size 12 CONN PLUG CABLE 4X1.6 MALE 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts connector,plasticcirc,size12,strplugw/bkshl,for4size16pincont,sealed CONN HSG PLUG 4POS CABLE PIN Coupling Plug UTS Trim Trio UTS 3+PEP Male 12, UTS6JC124P, Souriau Souriau 4路 电缆安装 直向 连接器 插头 , 公触点
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP

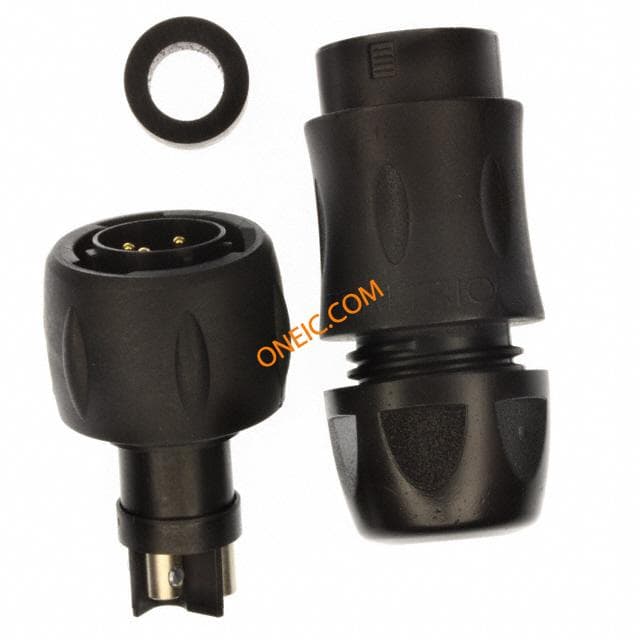

UTS6JC124PSCR
Souriau
Standard Circular Connector 14P Strt Pin Plug Backshell Size 12 CONN PLUG CABLE 4POS MALE SCREW 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts PLUG, SCREW, SIZE12, 4WAY, PIN Plug Coupling Plug UTS Trim Trio UTS 4P Female 12, UTS6JC124PSCR, Souriau Souriau 4路 电缆安装 直向 连接器 插头 , 公触点
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格

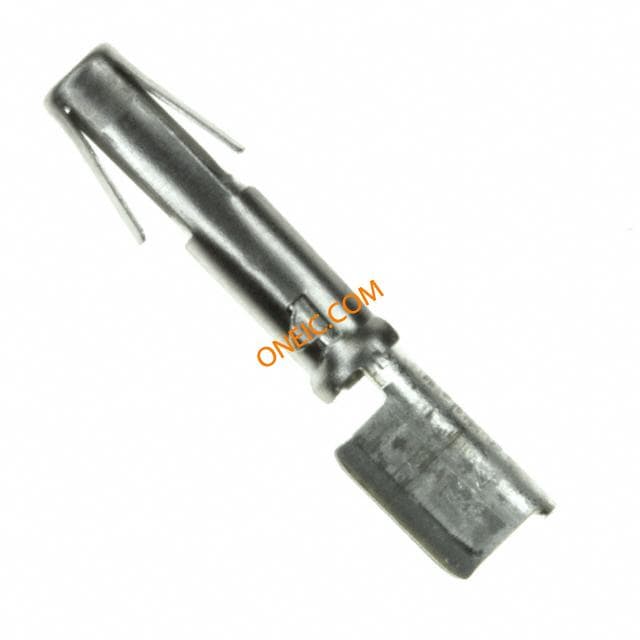

SC14M1TK6
