UTS1JC106S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 6P Sckt Recept Sz 10 Cable Mnt Backshell CONN HSG RCPT 6POS INLINE FEMALE CIRCULAR CONNECTOR RCPT, SIZE 10, 6POS, CABLE |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 方向 | Keyed |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | In-Line |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 10-6 |
| 本体材料 | :Thermoplastic | 第一触头极性 | Without Socket Contacts |
| 触点数 | 6 | 位数 | 6 |
| 外壳尺寸-插件 | 10-6 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Receptacle |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| 产品子类型 | Receptacles | ||
环境参数
| 防护等级 | IP 68, IP 69 | ||
文档与媒体
相关型号
RC20W3K
Souriau
Standard Circular Contacts Crimp Socket Contact 20-22 AWG CONTACT SKT CRIMP 20-22AWG GOLD UT0W Series Size 20 7.5A Female Circular Connector Contact, Crimp,Wire size 22 to 20AWG CONTACT SOCKET, UT0W, 22-20AWG SOCKETCONTACTSSIZE20-0.35-0.5MM2 Female contact 0.35...0.5 mm² Female, RC20W3K, Souriau Souriau UT0W 系列 7.5A 母 压接端接 圆形 连接器 触芯, 使用于UT0W 圆形连接器, 22 → 20 AWG 线规格
UTS710CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 10, Red CONN RCPT CODING RING SIZE10 RED RECEPTACLE COLOR CODING SIZE 10 - RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize10,red Coding ring for receptacles size 10, UTS710CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 10
UTS6JC106P
Souriau
Standard Circular Connector 6P Straight Pin Plug Backshell Size 10 CONN PLUG CABLE 6X1.0 MALE 6 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts connector,plasticcirc,size10,strplugw/bkshl,for6size20pincont,sealed Coupling Plug UTS Trim Trio UTS 6P Male 10, UTS6JC106P, Souriau Souriau 6路 电缆安装 直向 连接器 插头 , 公触点
UTS710CCRY
Souriau
Standard Circular Connector Receptacle Ring Shell Sz 10, Yellow CONN RCPT CODING RING SIZE10 YEL RECEPTACLE COLOR CODING SIZE 10 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,receptsize10,yellow Coding ring for receptacles size 10, UTS710CCRY, Souriau
SC24WL3TK6
Souriau
Standard Circular Contacts Trim Trio Socket 24 AWG Contact Sz 16 Female #20 Stamped and formed crimp contact

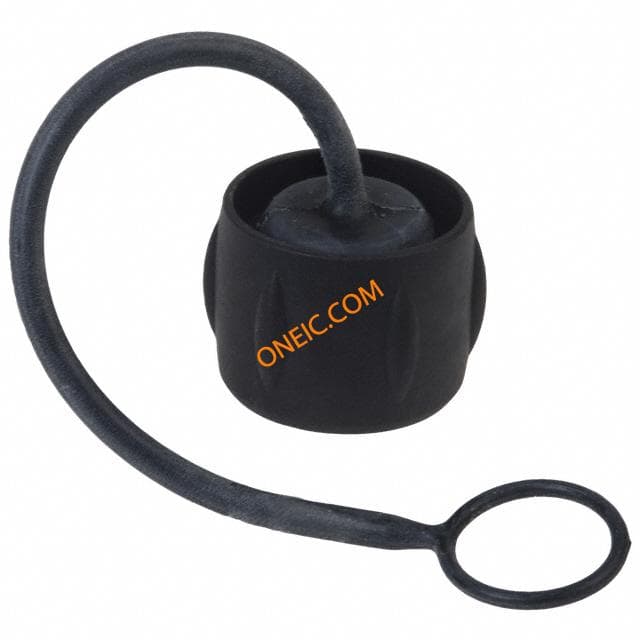

UTS10DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 10 CONN RCPT SEALING CAP SIZE 10 UTS RECEPTACLE DUSTCAP - SIZE 10 Connector Accessories Receptacle Sealing Cap Shell Size 10 connectoraccessory,dustcapforsize10uts-seriesreceptacle Cap for receptacles size 10, UTS10DCG, Souriau
UTS710CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 10, Green CONN RCPT CODING RING SIZE10 GRN RECEPTACLE COLOR CODING SIZE 10 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize10,green Coding ring for receptacles size 10, UTS710CCRG, Souriau

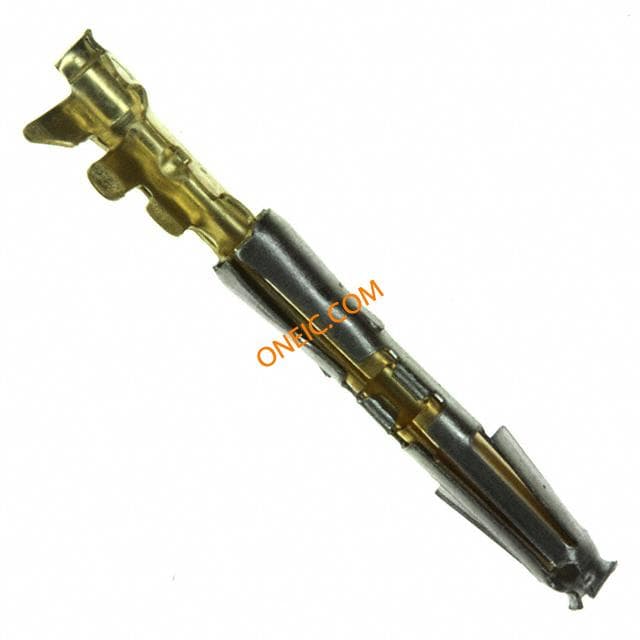

SC20W-3S25
