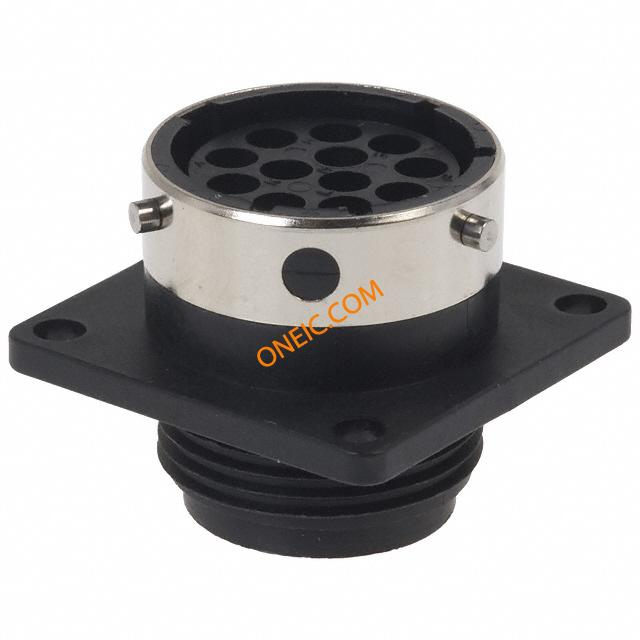

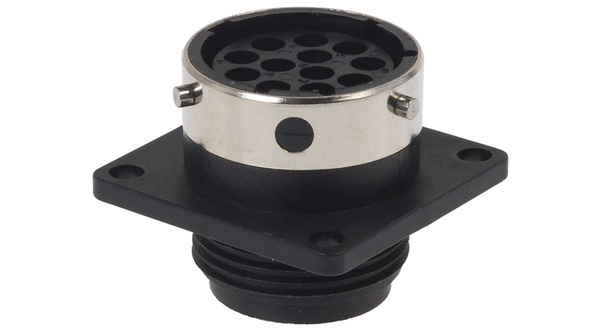

UTG014-12S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 12P Sckt Receptacle Wall Mount Size 14 CONN RCPT FEMALE 12POS WALL MT Conn CPC With Metal Coupling SKT 12 POS Crimp ST Wall Mount 12 Terminal 1 Port Bag connector,plasticcircular,metalcouplingring,wallrecept,size14,for12socket Female receptacle Trim Trio 12-pin Trim Trio UTG 12P Female 14, UTG014-12S, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
电气参数
| 频率 | 28.5 | 额定电压 | 500 |
| 极数 | 12 | 最大额定电流 | 13 A |
机械参数
| 深度 | 28.6 mm | 高度 | 28.6 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 14 | 方向 | Keyed |
| 外壳样式 | Square Flange | 端接方式 | Crimp |
| 触点形式 | 12Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wall | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | with flange | 插入角度 | 14-12 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Metal | 总长度 | 24.3 mm |
| 端接样式 | Crimp Connection | 第一触头极性 | Without Socket Contacts |
| 外径 | 22.2 | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 外壳尺寸-插入件（转换至） | 14-12 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | RCP |
| 系列 | UTG | 产品子类型 | Receptacles |
| 放大器类型 | 24.3 | 射频系列/标准 | UTG |
环境参数
| 工作温度 | -55C to 125C | ||
