点击放大查看

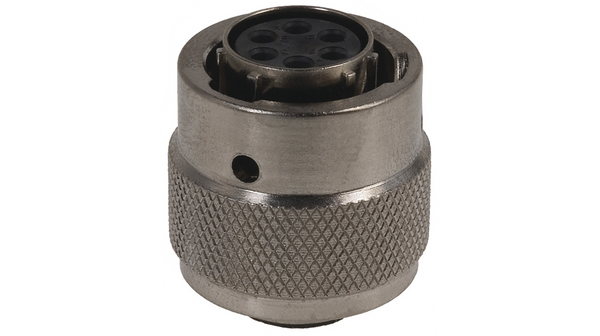

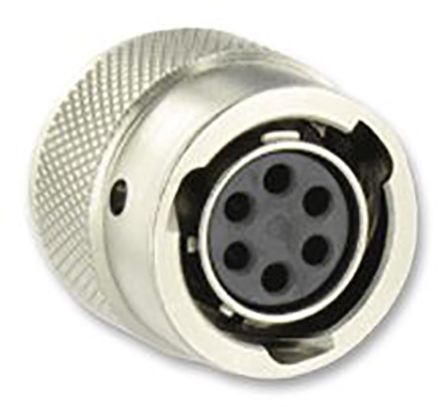

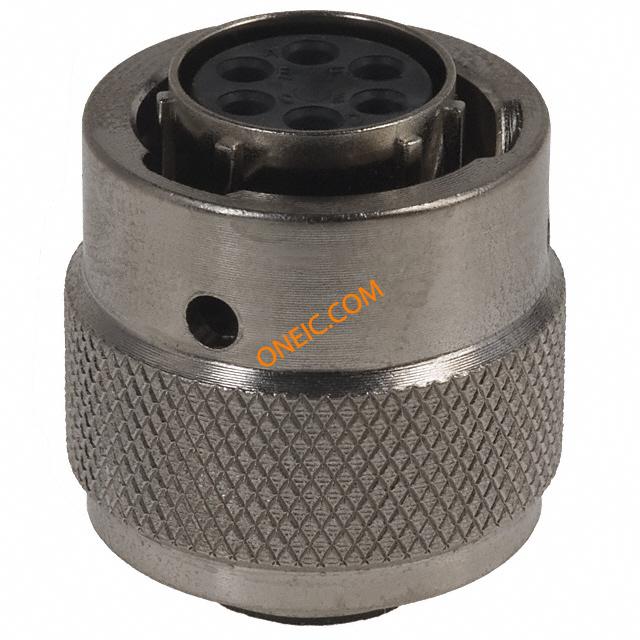

UT0W6106SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 6P Strt Socket Plug Shell Size 10 CONN PLUG CABLE HD FEMALE 6POS connector;metal circular;str plug;for 6 size 20 socket cont;ip68/ip69k sealing connector,metalcircular,strplug,for6size20socketcont,ip68/ip69ksealing Cable socket UT0W 6-pin Trim Trio UT0W 6P Female 10, UT0W6106SH, Souriau Souriau UT0W 系列 6路 电缆安装 直向 连接器 插头 , 母触点, 卡口式接合 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1076 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 150 V | 极数 | 6 |
| 连接器阻抗 | 标准 | 最大额定电流 | 7.5 A |
| 保护电压（VP）（2416） | IP 68/69 K | ||
机械参数
| 外形尺寸(长x宽) | 10 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 方向 | N (Normal) |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 连接器类型 | Plug for Female Contacts | 接触镀层 | 镍 |
| 紧固类型 | Bayonet Lock | 外壳材料（壳体） | Zinc Alloy |
| 连接器样式 | straight | 插入角度 | 10-6 |
| 锁定特性 | Bayonet lock | 触头材料 | CuNi+Au |
| 壳体材料 | AlZn alloy | 端接排数 | 嵌入式 |
| 端接样式 | Crimp Connection | 第一触头极性 | Without Socket Contacts |
| 触点数 | 6 | 位数 | 6 |
| 外壳尺寸-插件 | 10-6 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Zinc, Nickel Plated | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | UT0W |
| 产品特性 | Shielded | 产品子类型 | Cable Plugs |
环境参数
| 防护等级 | IP 67 | 工作温度 | -40...+105 °C |
文档与媒体
