点击放大查看

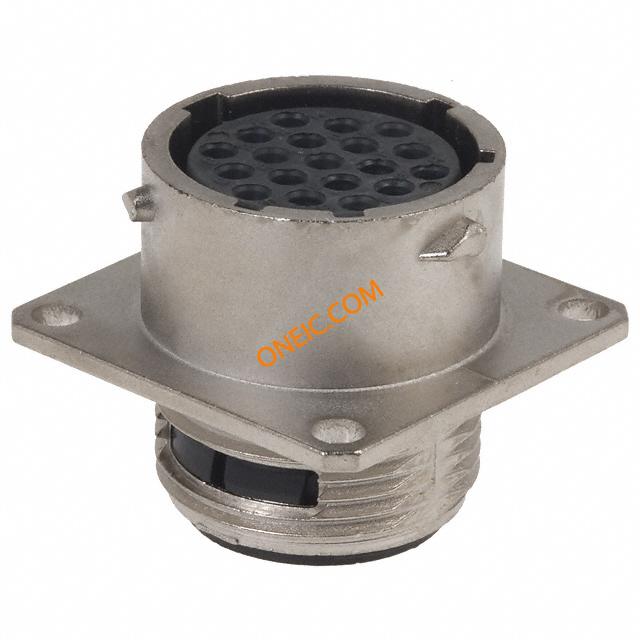

UT0W01419SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 19P Sckt Receptacle Wall Mount Size 14 CONN RCPT HD FMALE 19POS WALL MT connector,metalcirc,wallrecept,for19size20socketcont,ip68/ip69ksealing |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1068 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 150 V | ||
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 14 |
| 方向 | N (Normal) | 外壳样式 | Square Flange |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Flange | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | 14-19 | 第一触头极性 | Without Socket Contacts |
| 触点数 | 19 | 位数 | 19 |
| 外壳尺寸-插件 | 14-19 | 外壳材料及表面处理 | Zinc, Nickel Plated |
产品信息
| 备注 | Contacts Not Provided | 系列 | UT0W |
| 产品特性 | Shielded | 产品子类型 | Receptacles |
环境参数
| 防护等级 | IP 67 | ||
文档与媒体
相关型号
UT0W61419PH
Souriau
Standard Circular Connector 19P Strt Pin Plug Shell Size 14 CONN PLUG CABLE HD MALE 19POS PIN HOUSING, FREE, 19WAY connector,metalcircular,strplug,for19size20pincontact,ip68/ip69ksealing CONN HSG PLUG 19POS CABLE PIN Cable plug UT0W 19-pin Trim Trio UT0W 19P Male 14, UT0W61419PH, Souriau
RC20W3K
Souriau
Standard Circular Contacts Crimp Socket Contact 20-22 AWG CONTACT SKT CRIMP 20-22AWG GOLD UT0W Series Size 20 7.5A Female Circular Connector Contact, Crimp,Wire size 22 to 20AWG CONTACT SOCKET, UT0W, 22-20AWG SOCKETCONTACTSSIZE20-0.35-0.5MM2 Female contact 0.35...0.5 mm² Female, RC20W3K, Souriau Souriau UT0W 系列 7.5A 母 压接端接 圆形 连接器 触芯, 使用于UT0W 圆形连接器, 22 → 20 AWG 线规格

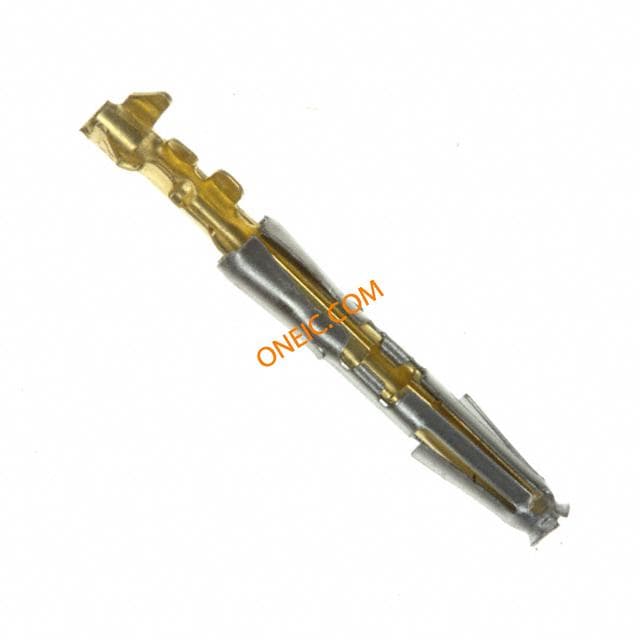

SC24WL-3S25
Souriau
Standard Circular Contacts Trim Trio Socket 24 AWG Contact Sz 20 CONTACT SKT CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size20,26-24awgwire Contact;Socket;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSCSer;Gold

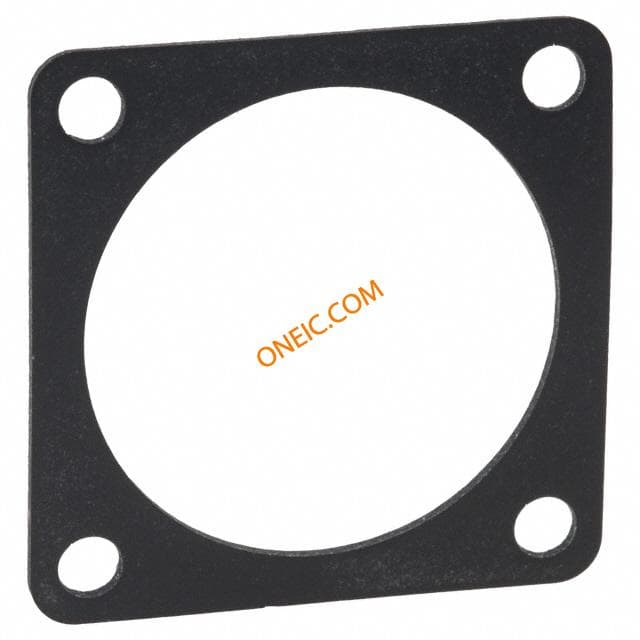

UTFD14B
Souriau
Circular MIL Spec Tools, Hardware & Accessories Receptacle Seal Wall Mount Size 14 Connector Accessories Receptacle Wall Mounting Seal 14 Shell Size CONN SEALING FOR WALL RCPT #14 Circular Connector Seal Receptacle Wall Mount SEALING, FOR WALL MNT RECPT, SIZE14 SquareGasketSeal-UT SQUARE SEAL 29mm

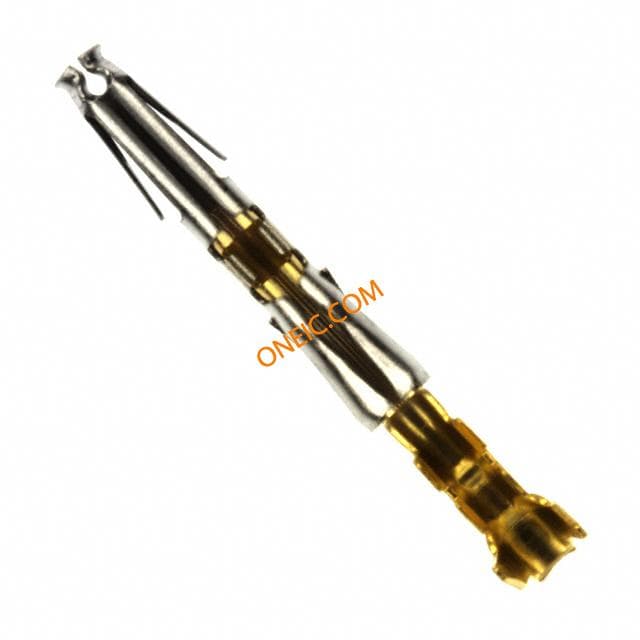

SC20WL-3S25
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 20 CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size20,22-20awgwire Contact;Socket;Stamped;Sz20;Crimp;22-20AWG;TrimTrioSCSer;Gold

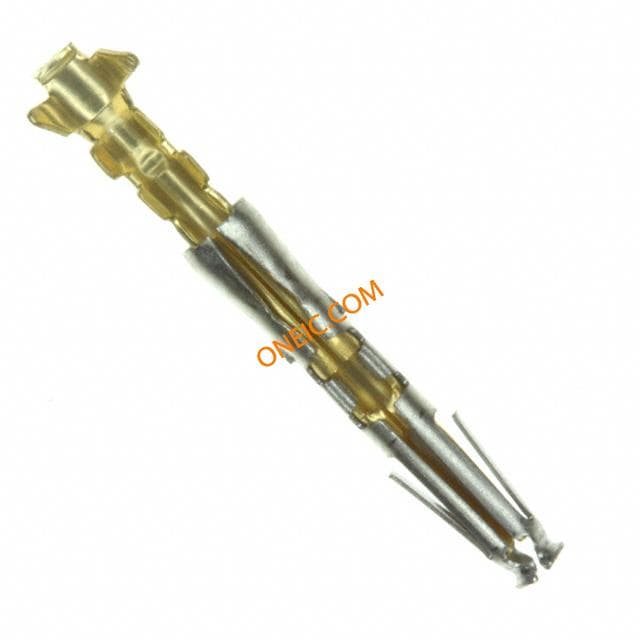

SC24W-3S25
