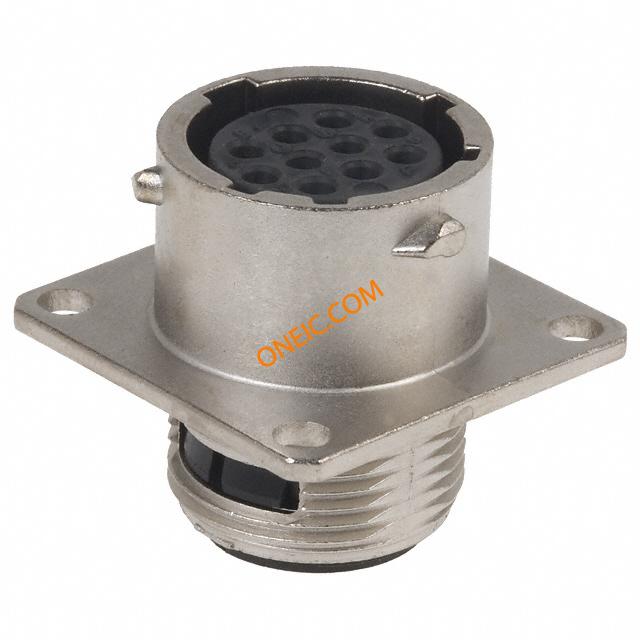

UT0W01210SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 10P Sckt Receptacle Wall Mount Size 12 CONN RCPT HD FMALE 10POS WALL MT connector,metalcirc,wallrecept,for10size20socketcont,ip68/ip69ksealing |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1066 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 150 V | ||
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 12 |
| 方向 | N (Normal) | 外壳样式 | Square Flange |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Flange | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | 12-10 | 第一触头极性 | Without Socket Contacts |
| 触点数 | 10 | 位数 | 10 |
| 外壳尺寸-插件 | 12-10 | 外壳材料及表面处理 | Zinc, Nickel Plated |
产品信息
| 备注 | Contacts Not Provided | 系列 | UT0W |
| 产品特性 | Shielded | 产品子类型 | Receptacles |
环境参数
| 防护等级 | IP 67 | ||
