点击放大查看

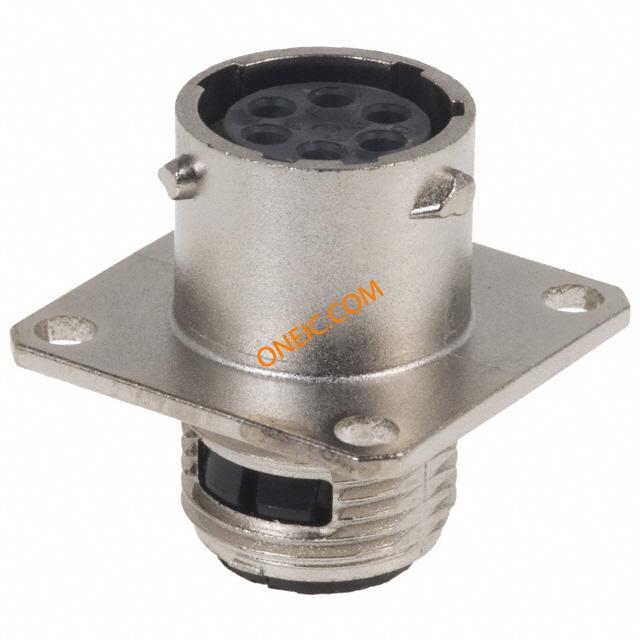

UT0W0106SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 6P Socket Receptacle Wall Mount Size 10 CONN RCPT HD FEMALE 6POS WALL MT RECEPT, PANEL, SIZE10, 6WAY, SKT connector,metalcirc,wallrecept,for6size20socketcont,ip68/ip69ksealing |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1064 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 150 V | ||
机械参数
| 重量 | 0.008 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 方向 | N (Normal) |
| 外壳样式 | Square Flange | 触点尺寸 | 20 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 外壳材料（壳体） | Zinc Alloy | 插入角度 | 10-6 |
| 本体材料 | :Zinc Alloy | 第一触头极性 | Without Socket Contacts |
| 触点数 | 6 | 位数 | 6 |
| 外壳尺寸-插件 | 10-6 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Socket |
| 系列 | UT0W | 产品特性 | Shielded |
| 产品子类型 | Receptacles | ||
环境参数
| 防护等级 | IP 67 | ||
