SMS2P1
| 制造商 | SOURIAU SAS |
| 描述 | Conn Housing PL 2 POS Crimp ST Cable Mount CONN PLUG 2POS CABLE Headers & Wire Housings 2P Cable Plug Sz 16 PLUG, FREE, QIKMATE, 2WAY QIKMATEPLUG |
| 分类 |
商业参数
| 其他名称 | SOU1217 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-2 |
电气参数
| 额定电压 | 2 kV | 开关功能 | Latched |
| 最大额定电流 | 5 A | ||
机械参数
| 深度 | 32.9 mm | 间距 | 0.200" (5.08mm) |
| 高度 | 15 mm | 重量 | 0.004 |
| 材料（通用） | :Polyamide | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Gold | 紧固类型 | Latch Lock |
| 排数 | 1 | 面板厚度 | :2.3mm |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide 6.6 |
| 总长度 | 17.8 mm | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Black | 触点数 | 2 |
| 面板开孔形状 | :11.4x11.6mm | 接触件端接 | Crimp |
| 位数 | 2 | 外径-未扩张 | :8.4mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | SMS |
| 产品子类型 | Plugs - Housings | 适用产品/相关产品 | :SMS - Qikmate Panel and Cable Connectors |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号

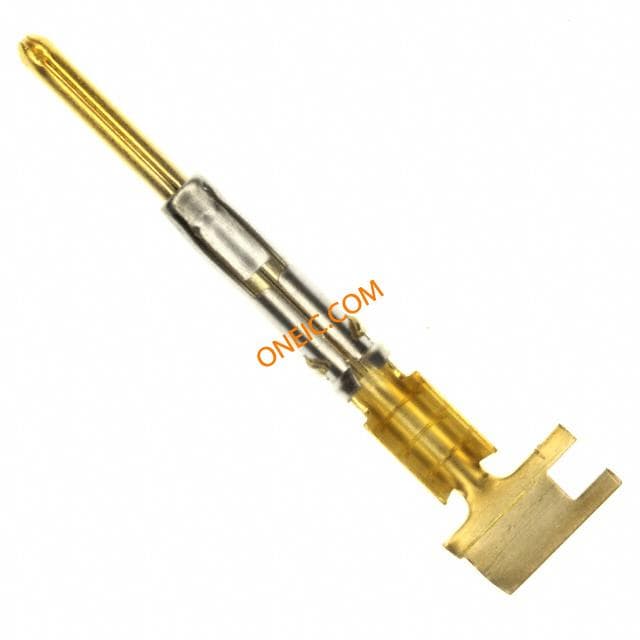

SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格
SC24M1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG TIN Pin & Socket Connectors Trim Trio Socket 24 AWG Contact Sz 16 CIRCULAR CONTACT, SKT, 26-24AWG, CRIMP tapeandreelcontacts

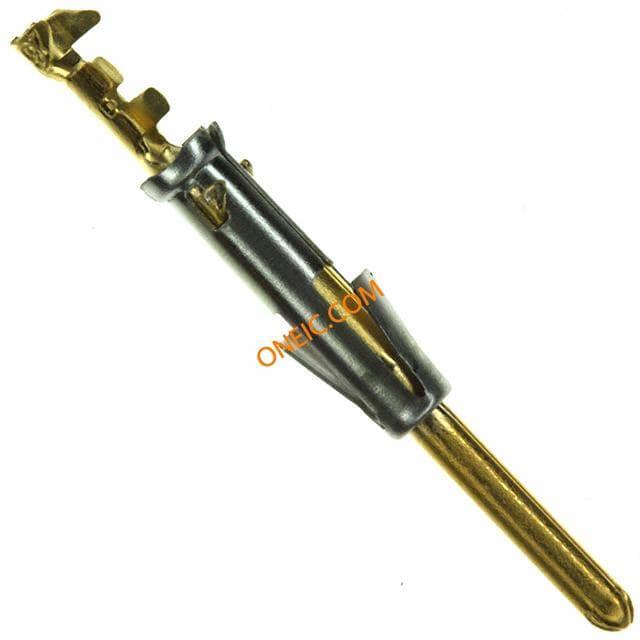

SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SC20M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 20-22AWG GOLD
SC14M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 14AWG GOLD

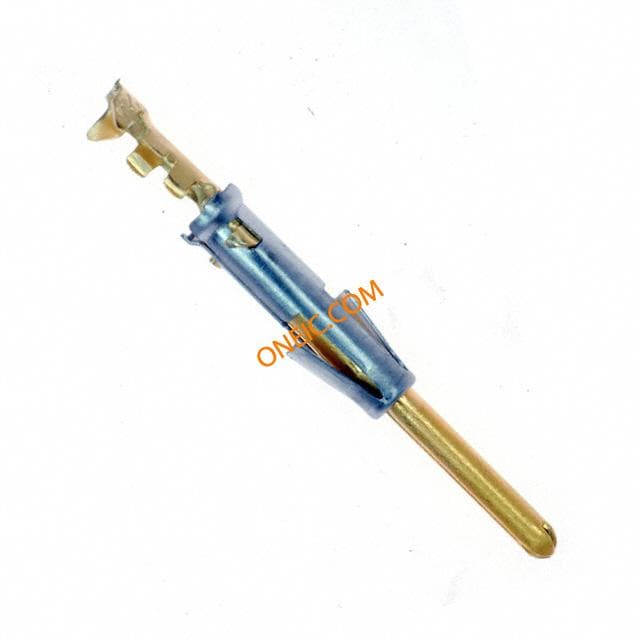

SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格

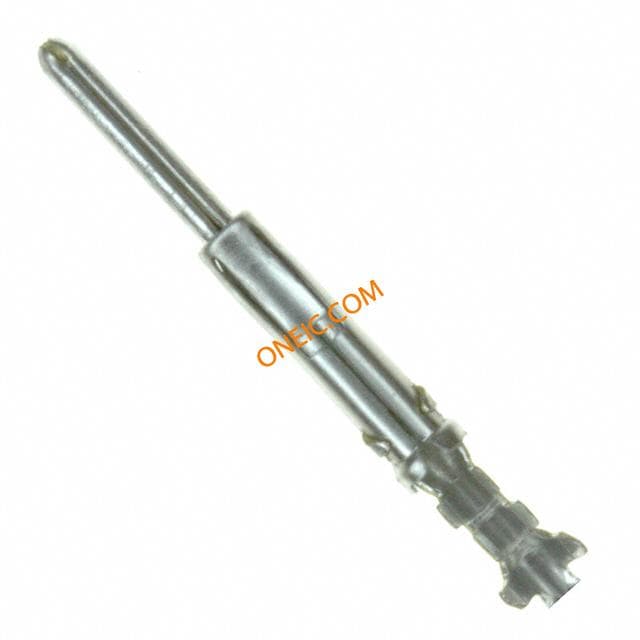

SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts

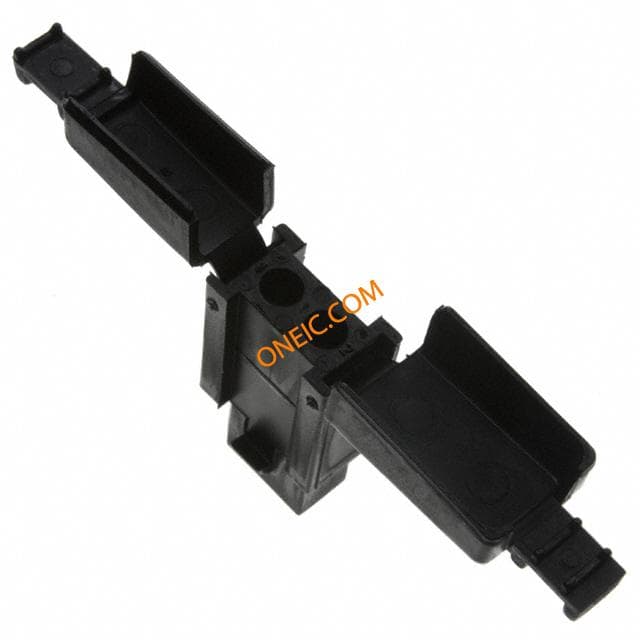

SMS2RDH1
SOURIAU
Conn Housing RCP 2 POS Crimp ST Cable Mount CONN RCPT 2POS CABLE W/SR HOOD Headers & Wire Housings 2P Panel Mnt Recept Strain Relief Hood SOCKET WITH HOOD, 2WAY Crimp housing, Trim Trio 5.08 mm Poles 2 SMS-Qikmate, SMS2RDH1, Souriau Souriau SMS 系列 2 路 直 母 电缆安装 PCB 连接器外壳
SC20M-1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 20-22AWG TIN tapeandreelcontacts
SC24M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG GOLD

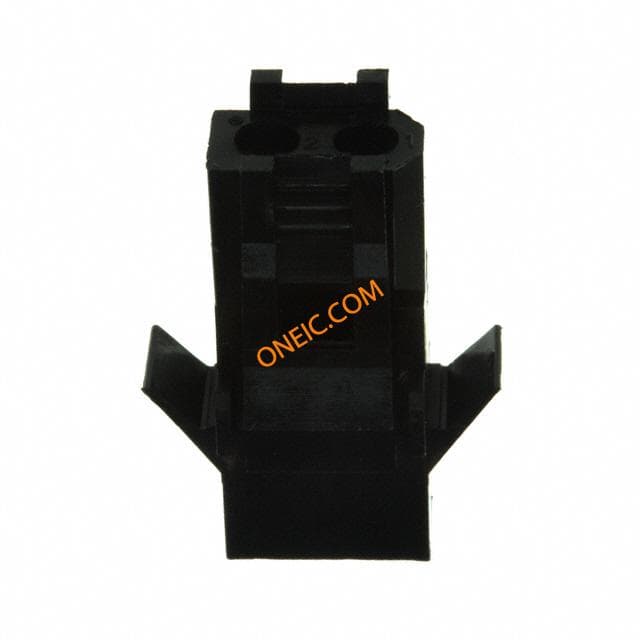

SMS2R1
SOURIAU
Conn Housing RCP 2 POS Crimp ST Panel Mount CONN RCPT 2POS PANEL MOUNT Headers & Wire Housings 2P Receptacle Sz 16 Panel Mt SOCKET, QIKMATE, 2WAY QIKMATERECPTACLE
SC14ML-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,for14awgwire Contact;Socket;Stamped;Sz16;Crimp;14AWG;TrimTrioSCSer;GoldFlashAll
SC16M-1S6
Souriau Connection Technology
CONTACT SKT CRIMP 16-18AWG GOLD

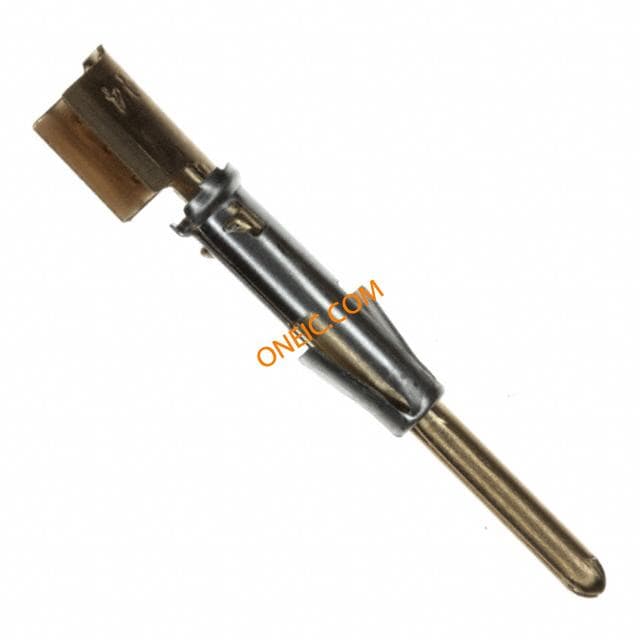

SM14ML-1S6
