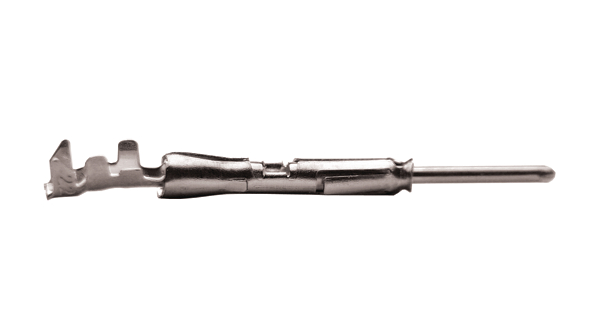

SM16ML11TK6
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 CONTACT PIN CRIMP 16-18 AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Male Circular Connector Contact, Crimp,Wire size 18 to 16AWG CRIMP PIN, TIN, 16AWG Crimp pin Male 18...16 AWG, SM16ML11TK6, Souriau Souriau 13A 公 压接端接 圆形 连接器 触芯, 使用于Trim Trio 连接器, 18 → 16 AWG 线规格 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Contacts | 标准包装数量 | 500 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 工作电压 | :750V | 接触电阻 | 6mΩ |
| 最大额定电流 | 13A | ||
机械参数
| 尺寸 | 16 | 长度 | 28mm |
| 重量 | 0.046 | 包装方式 | Bulk |
| 导线线规 | 16-18 AWG | 端接方式 | Crimp |
| 触点尺寸 | 16 | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 接触镀层 | Tin |
| 触头材料 | Copper Alloy | 包装数量 | :25 |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 线规或范围 - AWG | :18AWG | 线规或范围 - mm² | :1.5mm² |
| 外径-未扩张 | :3mm | ||
产品信息
| 类型 | Stamped | 连接器性别 | Male |
| 系列 | G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP | 适用产品/相关产品 | :Metalok Bantam, Qikmate, UTG and UTO Housings |
