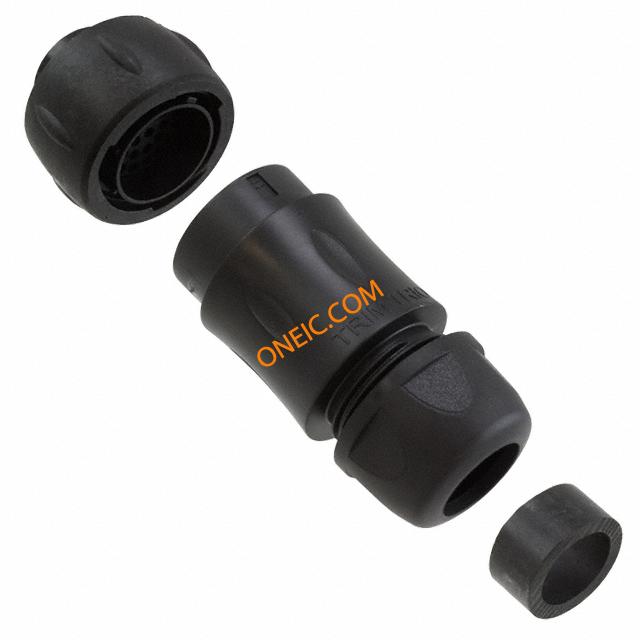

UTS6JC18-32P
| 制造商 | SOURIAU SAS |
| 描述 | CONN PLUG CABLE 32X2.0 MALE |
商业参数
| 标准包装数量 | 25 | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Bayonet Lock | 位数 | 32 |
| 外壳尺寸-插件 | 18-32 | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 备注 | Contacts Not Provided | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | ||
