点击放大查看

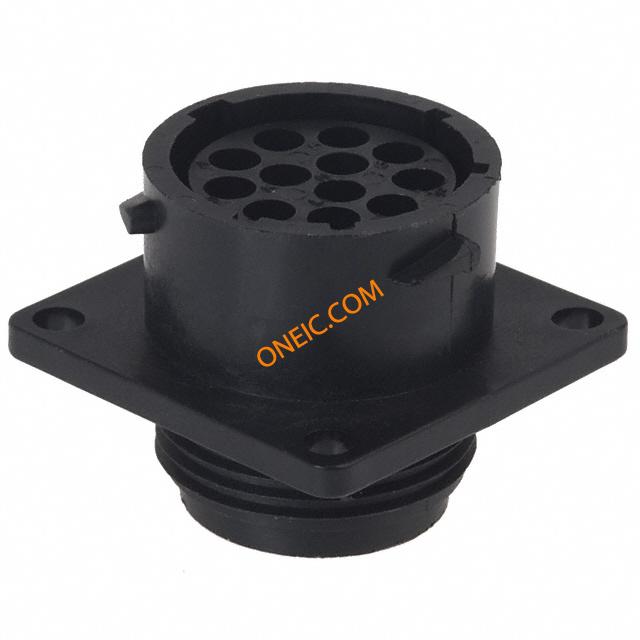

UTP01412S
| 制造商 | SOURIAU SAS |
| 描述 | CONN RCPT FEMALE 12POS WALL MNT 12 Way Female Wall Mount Connector,Female Contacts,Shell Size 14 CIRCULAR CONN, RECEPTACLE, 12 WAY, PANEL connector,plasticcircular,wallreceptacle,size14,for12size16socketcontact Souriau 12路 壁挂式 连接器 卡口耦合 插座 ,母触芯, 外壳尺寸14 |
| 分类 |
商业参数
| 其他名称 | SOU1143 | 标准包装数量 | 100 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.0111 | 包装方式 | Bulk |
| 外壳尺寸 | 14 | 方向 | Keyed |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 插入角度 | :14-12 |
| 本体材料 | :Glass Filled Thermoplastic | 第一触头极性 | Female |
| 连接器颜色 | :Black | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 第一连接器安装类型 | :Panel |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | :UTP | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | +125°C |
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau

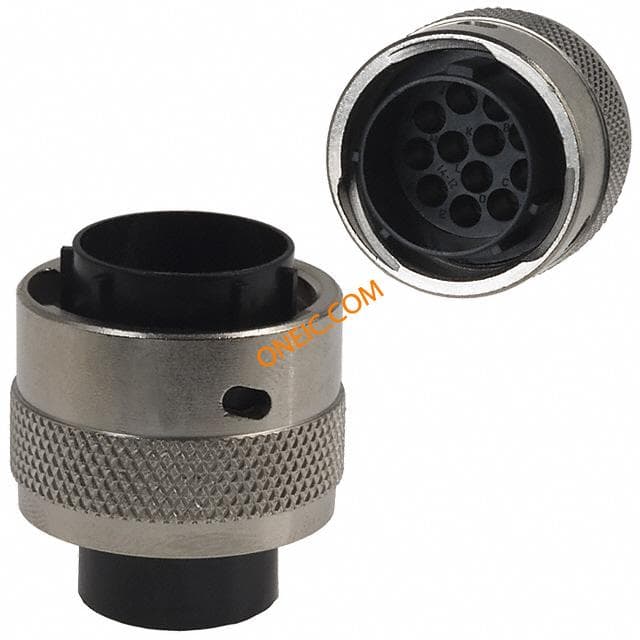

UTG614-12PN
