点击放大查看

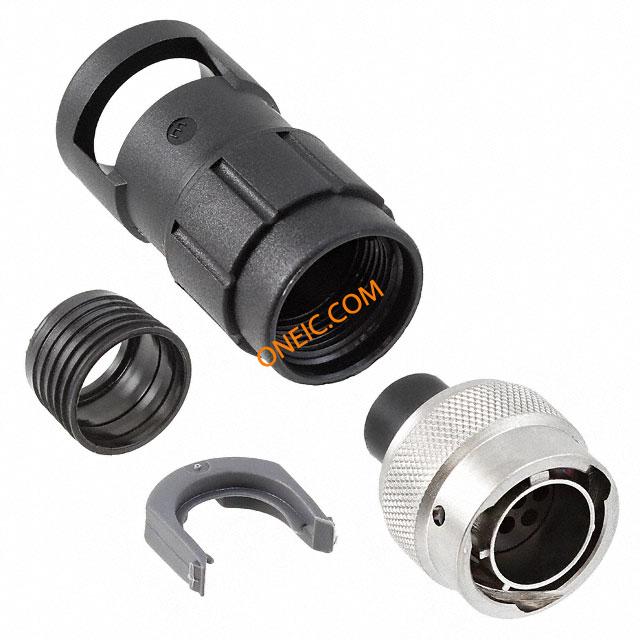

UT0W6FC1210PH
| 制造商 | SOURIAU SAS |
| 描述 | CONN HSG PLUG 10POS INLINE PIN |
| 分类 |
商业参数
| 其他名称 | SOU1891 | 标准包装数量 | 25 |
机械参数
| 包装方式 | Bulk | 方向 | N (Normal) |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Bayonet Lock | 位数 | 10 |
| 外壳尺寸-插件 | 12-10 | 外壳材料及表面处理 | Zinc Alloy, Nickel Plated |
产品信息
| 备注 | Contacts Not Provided | 产品特性 | Shielded |
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | ||
文档与媒体
相关型号
RM18W3K
Souriau
Standard Circular Contacts MALE CRIMP CONTACT AWG 18 MALE MACHINED CRIMP CONT Souriau UT0W Series Gold over Nickel Plated Crimp Pin Connector, 20 to 18AWG CONTACT, MALE, AWG20-18 Male contact 0.5....1 mm² Male, RM18W3K, Souriau Souriau UT0W 系列 圆形 连接器 触芯, 20 → 18 AWG 线规格
UT0W012-10SH6
Souriau
Standard Circular Connector 10P Sckt Receptacle Wall Mount Size 12 CONN SKT RCPT 10SKT CRIMP CONN HSG RCPT 10POS WALL MNT SKT
RM20W3K
Souriau
Standard Circular Contacts MALE CRIMP CONTACT AWG 20 CONTACT PIN CRIMP 20-22AWG GOLD PIN CONTACTS SIZE 20 - 0.35-0.5 MM2 CIRCULAR CONTACT, PIN, 22-20 AWG, CRIMP PINCONTACTSSIZE20-0.35-0.5MM2 Male contact 0.35...0.5 mm² Male, RM20W3K, Souriau Souriau UT0W 系列 7.5A 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24W-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 CONTACT PIN CRIMP 24-26AWG GOLD
SM24WL-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincont,size20,for26-24awgwire Contact;Pin;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSMSer;Gold
SM20WL-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 20 AWG Contact Sz 20 CONTACT PIN CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size20,22-20awgwire Contact;Pin;Stamped;Sz20;Crimp;22-20AWG;TrimTrioSMSer;Gold
SM20W-3TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 20 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel .040 PIN REEL ASSY SZ20
UTG612DCG
Souriau
Standard Circular Connector Plug Cap Size 12 UTG Series ENVRNMNTL DUST CAP 4 PLG CONN PLUG SEALING CAP SIZE 12 ENVRNMNTLDUSTCAPFORPLUGS;SIZE12 Souriau UTG 系列 插头 IP65 防尘盖, 尺寸12
SM24W-3TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 .040 PIN REEL ASSY SZ24
RM24W3K
Souriau
Standard Circular Contacts MALE/PIN MACHINE CONTACT UT0W Series Size 20 7.5A Male Circular Connector Contact, Crimp,Wire size 26 to 24AWG CONTACT PIN, UT0W, 26-24AWG Male contact 0.13...0.25 mm² Male, RM24W3K, Souriau Souriau UT0W 系列 7.5A 公 压接端接 圆形 连接器 触芯, 使用于Trim Trio 连接器, 26 → 24 AWG 线规格
SM20W-3S26
Souriau Connection Technology
CONTACT PIN CRIMP 20-22AWG GOLD
SM24WL-3TK6
Souriau Connection Technology
CONTACT PIN CRIMP 24-26AWG TIN connectorcomponent,stampedandformedcrimppincont,size20,for26-24awgwire Contact;Pin;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSMSer;TinPlate
SC20WL-3TK6
Souriau Connection Technology
CONTACT SKT CRIMP 20-22AWG TIN connectorcomponent,stampedandformedcrimpsocketcont,size20,22-20awgwire Contact;Socket;Stamped;Sz20;Crimp;22-20AWG;TrimTrioSCSer;TinPlate
UT0W71210SH6
Souriau Connection Technology
CONN SKT RCPT 10SKT CRIMP SOCKET HOUSING, JAM NUT, 10WAY CONN HSG RCPT 10POS JAM NUT SKT
