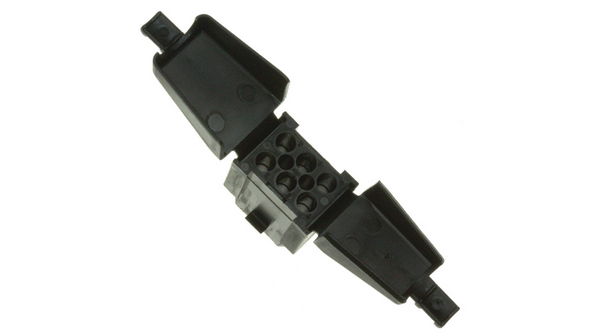

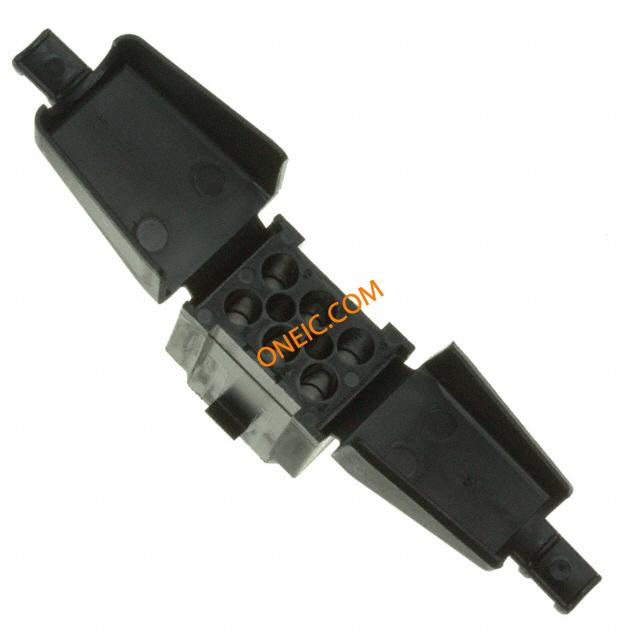

SMS6RDH1
| 制造商 | SOURIAU SAS |
| 描述 | CONN RCPT 6POS CABLE W/SR HOOD Headers & Wire Housings 6P Cable Receptacle Strain Relief Hood Crimp housing, Trim Trio 5.08 mm Poles 6 SMS-Qikmate, SMS6RDH1, Souriau Souriau SMS 系列 2 行 6 路 直 母 电缆安装 PCB 连接器外壳 |
| 分类 |
商业参数
| 其他名称 | SOU1204 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 频率 | 9.2 | 测试电压 | 2 |
| 额定电压 | 500 | 极数 | 6 |
| 最大额定电流 | 5 A | 绝缘电阻 | 5000 MOhm |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 深度 | 15mm | 间距 | 0.200" (5.08mm) |
| 宽度 | 50.9mm | 高度 | 50.9 |
| 长度 | 72.6mm | 壳体颜色 | 15 |
| 方向 | 直 | 排间距 | 0.200" (5.08mm) |
| 触点形式 | Male or Female | 触头类型 | Male or Female |
| 引脚间距 | 0.200" (5.08mm) | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 2 | 触头材料 | CuNi+Au |
| 壳体材料 | Polyamide (PA 66) | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 第一连接器极性 | Female |
产品信息
| 备注 | Contacts Not Provided | 系列 | SMS |
| 产品特性 | Strain Relief | 主要用途 | Strain Relief |
| 产品子类型 | Receptacles / Sockets - Housings | 放大器类型 | 34.6 |
| 连接方式 | Wire-Wire | 输出配置 | Free Hanging (In-Line) |
| 适用产品/相关产品 | 快速接合印刷电路板连接器 | ||
环境参数
| 工作温度 | -55...+105 °C | ||
