点击放大查看

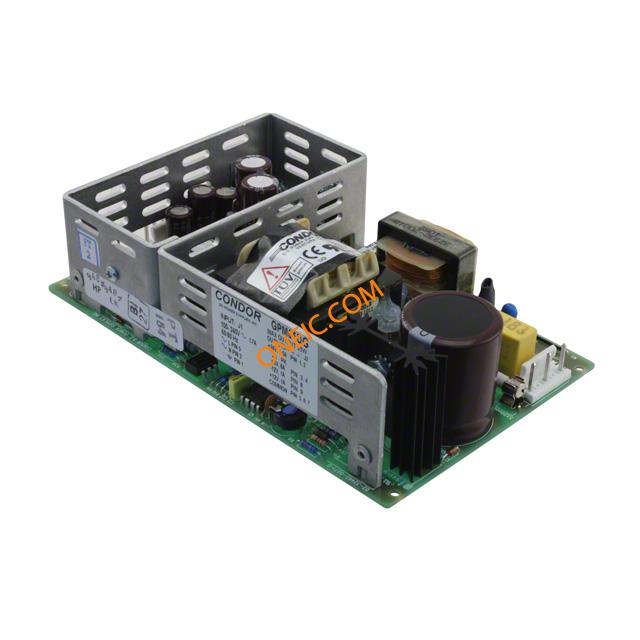

GPM55DG
| 制造商 | |
| 描述 | AC/DC Power Supply Quad-OUT 5V/24V/12V/-12V 6A/1.5A/1A/1A 55W 14-Pin PS MEDICAL QUAD OUT +5,12,24,-12 PowerSupply,MulipleOutput,4;85-264VAC;55W;1.7A(Max);RoHSCompliant |
| 分类 |
商业参数
| 其他名称 | 271-2356 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | CE, CSA, IEC, TUV, UL |
电气参数
| 输出端 | 5VDC@6A,24VDC@1.5A,12VDC@1A,-12VDC@-1A | 频率 | 47 to 63 Hz |
| 操作方式 | Switching | 效率 | 70 % |
| 最大功率 | 55 W | 功率（瓦） | 55W |
| 输入功率 | Switching (Open Frame) | 额定输出功率 | 55W |
| 额定电压 | 85 to 264 V | 电源调整率 | 2%, 3% |
| 负载调整率 | 2%, 3% | 输出电流 | 6|1.5|1|1 A |
| 供电电压 | 5V, ±12V, 24V | 输出数量 | 4 |
| 供电类型 | Switching (Open Frame) | 最大功率（瓦特） | 55W |
| 最大额定电流 | 1.7 A | 最小输入电压 | 5V, ±12V, 24V |
| 输出电流（最大） | 12 VDC @ 1A | ||
机械参数
| 尺寸 | 6.30" L x 3.94" W x 1.68" H (160.0mm x 100.0mm x 42.7mm) | 安装类型 | Chassis Mount |
| 安装样式 | Panel | 主要材料 | AC-DC |
| 尺寸/外形 | 6.30" L x 3.94" W x 1.68" H (160.0mm x 100.0mm x 42.7mm) | ||
产品信息
| 类型 | Switching | 系列 | GPM55 |
| 产品特性 | 2-YearsWarranty | 应用 | Medical |
| 制造商全称 | GPM55Series | 配置 | Open-Frame |
| 输出配置 | Chassis Mount | ||
环境参数
| 工作温度 | 0°C ~ 50°C | ||
