点击放大查看

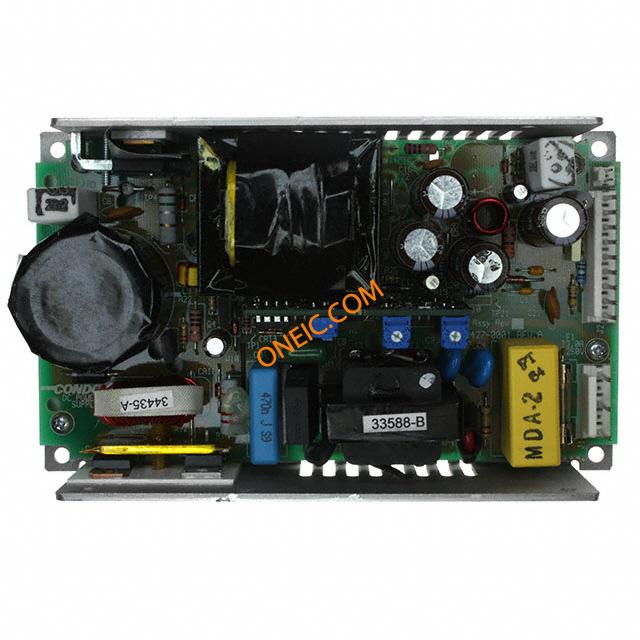

GPFC110-15
| 制造商 | |
| 描述 | AC/DC Power Supply Single-OUT 15V 5.3A 75W PWR SPLY SWITCHER PFC 110W 15V |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 271-2176 |
| 子类别 | AC to DC Power Supply | 标准包装数量 | 1 |
合规参数
| RoHS | Vendor undefined / Vendor undefined | 欧盟RoHS | Not Compliant |
| 认证机构 | CE, CSA, IEC, TUV, UL | ||
电气参数
| 频率 | 47 to 63 | 最大功率 | 75 |
| 功率（瓦） | 110W | 额定电压 | 15 |
| 电源调整率 | 2% | 负载调整率 | 2% |
| 输出电流 | 15 VDC @ 5.3A | 输出数量 | 1 |
| 供电类型 | Switching (Open Frame) | 最大功率（瓦特） | 110W |
| 最小输入电压 | 15V | ||
机械参数
| 安装类型 | Chassis Mount | 尺寸/外形 | 6.30" L x 3.75" W x 1.62" H (160.0mm x 95.3mm x 41.2mm) |
产品信息
| 类型 | Switching | 样式 | U Frame |
| 应用 | Commercial | ||
环境参数
| 工作温度 | 0°C ~ 50°C | ||
