点击放大查看

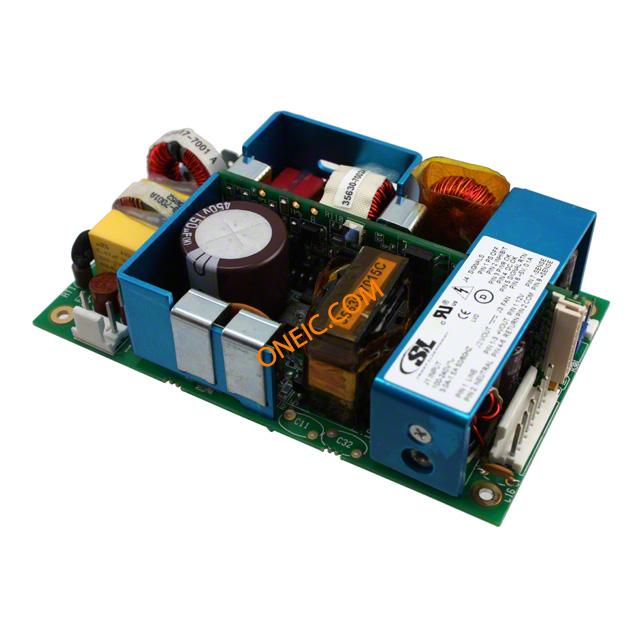

GNT215G
| 制造商 | SL Power Electronics |
| 描述 | AC/DC Power Supply Single-OUT 15V 10A 200W 18-Pin POWER SUP UNIV INPUT 15V 10.0A PowerSupply,MedicalandCommercial,200W,15V,6.7A@100VAC,10.0A@240VAC |
| 分类 |
商业参数
| 其他名称 | 271-2546 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | CE, CSA, EN, IEC, UL | ||
电气参数
| 输出端 | 15VDC@13.3A | 频率 | 45 to 65 Hz |
| 操作方式 | Switching | 效率 | 90(Typ) % |
| 最大功率 | 200 W | 功率（瓦） | 200W |
| 额定输出功率 | 200W | 额定电压 | 80 to 270 V |
| 电源调整率 | ±2% | 负载调整率 | ±2% |
| 输出电流 | 10 A | 输出数量 | 1 |
| 供电类型 | Switching (Open Frame) | 最大功率（瓦特） | 200W |
| 最大额定电流 | 3 A | 最小输入电压 | 15V |
机械参数
| 安装类型 | Chassis Mount | 安装样式 | Panel |
| 主要材料 | AC-DC | 尺寸/外形 | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) |
| 位数 | 18 | ||
产品信息
| 类型 | Regulated | 样式 | Medical Open Frame |
| 产品特性 | PFC,RemoteSense | 应用 | Commercial |
| 制造商全称 | GNT200Series | 配置 | OpenFrame |
环境参数
| 工作温度 | 0 to 70 °C | ||
