点击放大查看

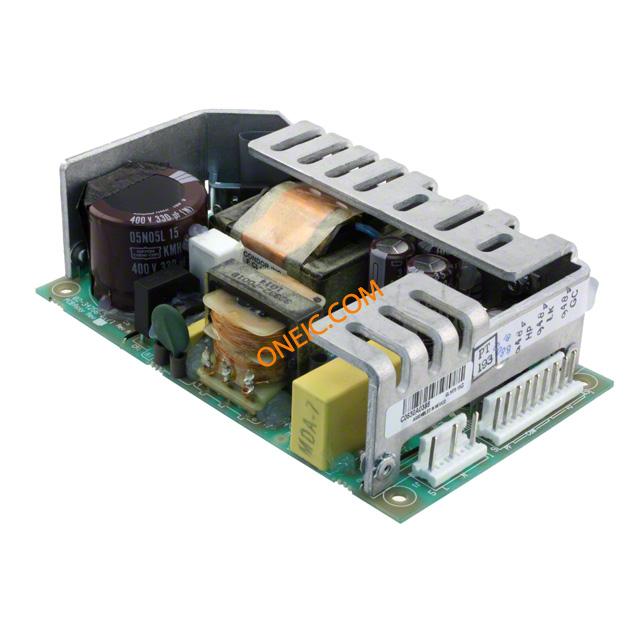

GLM75-15G
| 制造商 | |
| 描述 | AC/DC Power Supply Single-OUT 15V 5A 75W 12-Pin PWR SPLY MED SWITCHER 75W 15V |
| 分类 |
商业参数
| 交货时间 | 112 Days | 子类别 | AC to DC Power Supply |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | CE, CSA, EN, IEC, UL |
电气参数
| 频率 | 47 to 63 Hz | 效率 | 85 % |
| 最大功率 | 75 W | 功率（瓦） | 75W |
| 额定电压 | 90 to 264 V | 电源调整率 | 1% |
| 负载调整率 | 1% | 输出电流 | 5 A |
| 输出数量 | 1 | 供电类型 | Switching (Open Frame) |
| 最大功率（瓦特） | 75W | 最大额定电流 | 2.3 A |
| 最小输入电压 | 15V | ||
机械参数
| 安装类型 | Chassis Mount | 尺寸/外形 | 5.75" L x 3.40" W x 1.56" H (146.0mm x 86.4mm x 39.7mm) |
产品信息
| 类型 | Switching | 应用 | Medical |
| 适用产品/相关产品 | GLM75-15 | ||
环境参数
| 工作温度 | 0 to 50 °C | ||
文档与媒体
相关型号
640250-9
te connectivity / amp
Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9 POS W/RAMP SL-156 Headers & Wire Housings 09P SL156 HSG W/LCK Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 9POS, 3.96MM Connector;Receptacle;9;Crimp;LockingRamp;180deg;Nylon;SL-156Housings 09P SL156 HSG W/LCK RAMP NATL
08-30466-1075
sl power electronics
CHASSIS, GLx75 SINGLE SERIES
640250-5
te connectivity / amp
Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5 POS W/RAMP SL-156 5w housing without polarising tabs Headers & Wire Housings 5P HSG W/LCK RMP SL156 Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;5;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 5P, 640250-5, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 5 路 直 母 电缆安装 压接连接器外壳 05P SL156 HSG W/LCK RAMP NATL
08-30466-1075G
sl power electronics
CHASSIS, GLx75 SINGLE SERIES
