点击放大查看

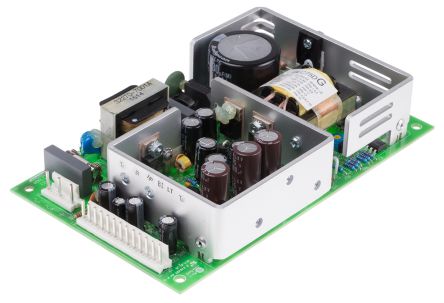

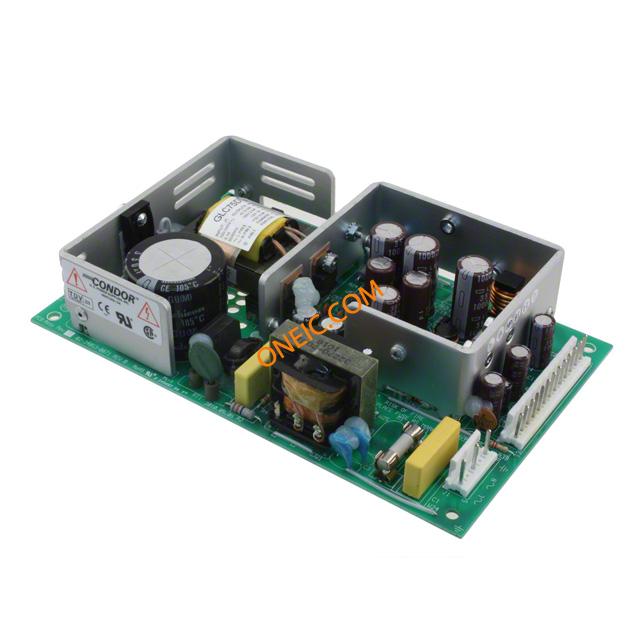

GLC75DG
| 制造商 | |
| 描述 | AC/DC Power Supply Quad-OUT 5.1V/24V/-12V/12V 8A/2.5A/1A/2.5A 75W PS QUAD OUT 75W +5.1,24,-12,12V PowerSupply;AC-DC;5.1V@8A,12V@2.5A,24V@2.5A,-12V@1A;90-264VIn;OpenFrame;GLC SL POWER CONDOR 嵌入式开关模式电源 SMPS , 开放式封装 |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 271-2326 |
| 子类别 | AC to DC Power Supply | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | CE, CSA, EN, IEC, UL |
电气参数
| 输出端 | 5.1VDC@8A,12VDC@2.5A,24VDC@2.5A,-12VDC@1A | 频率 | 47 to 63 Hz |
| 操作方式 | Switching | 效率 | 78 % |
| 最大功率 | 75 W | 功率（瓦） | 75W |
| 额定输出功率 | 75W | 额定电压 | 90 to 264 V |
| 电源调整率 | 2%; 10%, -5%; 3% | 负载调整率 | 2%; 10%, -5%; 3% |
| 输出电流 | 8|2.5|1|2.5 A | 输出数量 | 4 |
| 供电类型 | Switching (Open Frame) | 最大功率（瓦特） | 75W |
| 最大额定电流 | 2.3 A | 最小输入电压 | 5.1V, ±12V, 24V |
机械参数
| 安装类型 | Chassis Mount | 安装样式 | Panel |
| 包装数量 | 开放式 | 主要材料 | AC-DC |
| 尺寸/外形 | 7.00" L x 4.25" W x 1.30" H (177.8mm x 108.0mm x 33.0mm) | ||
产品信息
| 类型 | Switching | 产品特性 | 2-YearsWarranty |
| 功能 | Y | 应用 | Commercial |
| 制造商全称 | GLCSeries | 配置 | OpenFrame |
| 适用产品/相关产品 | GLC75D | ||
环境参数
| 工作温度 | 0 to 50 °C | ||
