点击放大查看

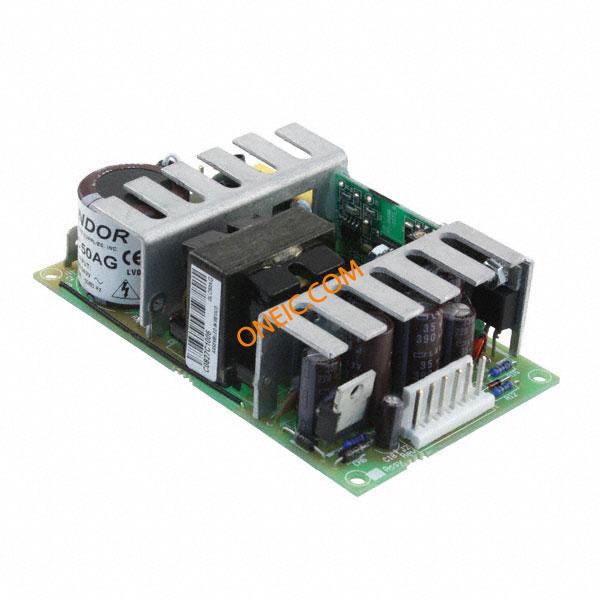

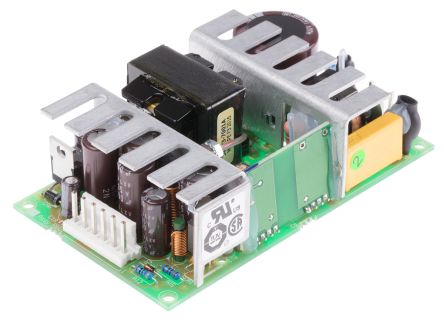

GLC50AG
| 制造商 | SL Power Electronics |
| 描述 | AC/DC Power Supply Triple-OUT 5.05V/12V/-12V 4A/2.5A/0.2A 50W 9-Pin PS TRIPLE OUT 50 W +5.1,12,-12V POWERSUPPLY,SWITCHING;50W;90TO264VAC;4A;37A;CEMARKED;5.05V SL POWER CONDOR 嵌入式开关模式电源 SMPS , 开放式封装 |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 271-2309 |
| 子类别 | AC to DC Power Supply | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | CE, CSA, EN, IEC, UL |
电气参数
| 输出端 | 5.05VDC@4A,12VDC@2.5A,-12VDC@0.2A | 频率 | 47 to 63 Hz |
| 操作方式 | Switching | 效率 | 85 % |
| 最大功率 | 50 W | 功率（瓦） | 50W |
| 额定输出功率 | 50W | 额定电压 | 90 to 264 V |
| 电源调整率 | 2%; 10%, -5%; 3% | 负载调整率 | 2%; 10%, -5%; 3% |
| 输出电流 | 4|2.5|0.2 A | 输出数量 | 3 |
| 供电类型 | Switching (Open Frame) | 最大功率（瓦特） | 50W |
| 最大额定电流 | 1.5 A | 最小输入电压 | 5.05V, ±12V |
机械参数
| 安装类型 | Chassis Mount | 安装样式 | Panel |
| 包装数量 | 开放式 | 主要材料 | AC-DC |
| 尺寸/外形 | 4.25" L x 2.50" W x 1.25" H (180.0mm x 63.5mm x 31.8mm) | ||
产品信息
| 类型 | Switching | 产品特性 | 2-YearsWarranty,Compact |
| 功能 | Y | 应用 | Commercial |
| 制造商全称 | GLC50Series | 配置 | OpenFrame |
| 适用产品/相关产品 | GLC50A | ||
环境参数
| 工作温度 | 0 to 50 °C | ||
