GLC50-3.3
| 制造商 | SL Power Electronics |
| 描述 | AC/DC Power Supply Single-OUT 3.3V 8A 50W 9-Pin PS SWITCHER 50 W 3.3 V 8.0 A |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 271-1109 |
| 子类别 | AC to DC Power Supply | 标准包装数量 | Bulk |
合规参数
| RoHS | Vendor undefined / Vendor undefined | 认证机构 | CE, CSA, EN, IEC, UL |
电气参数
| 频率 | 47 to 63 Hz | 效率 | 85 % |
| 最大功率 | 50 W | 功率（瓦） | 50W |
| 额定电压 | 90 to 264 V | 电源调整率 | 2% |
| 负载调整率 | 2% | 输出电流 | 8 A |
| 输出数量 | 1 | 供电类型 | Switching (Open Frame) |
| 最大功率（瓦特） | 50W | 最大额定电流 | 1.5 A |
| 最小输入电压 | 3.3V | ||
机械参数
| 安装类型 | Chassis Mount | 尺寸/外形 | 4.25" L x 2.50" W x 1.25" H (180.0mm x 63.5mm x 31.8mm) |
产品信息
| 类型 | Switching | 应用 | Commercial |
环境参数
| 工作温度 | 0 to 50 °C | ||
相关型号
08-30466-0050
sl power electronics
COVER FOR GLC50 POWER SUPPLY

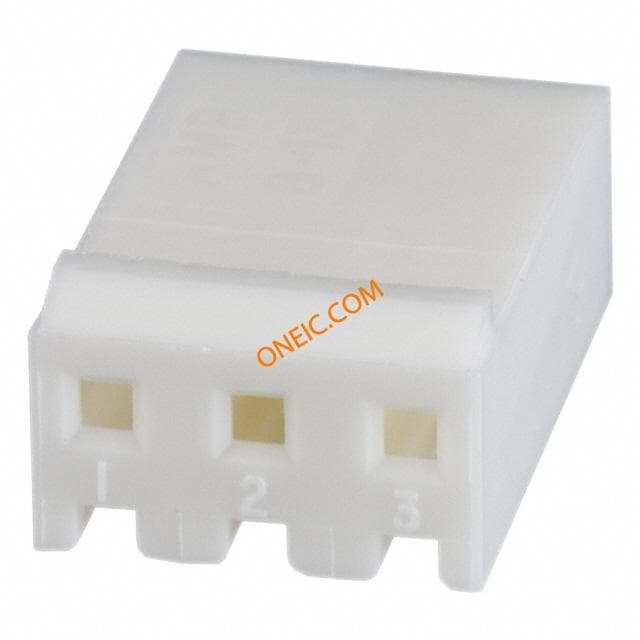

640250-3
te connectivity / amp
Conn Housing RCP 3 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3 POS W/RAMP SL-156 3w housing without polarising tabs Connector; Receptacle; 3; Crimp; Locking Ramp; 180 deg; Nylon; SL-156 Housings Headers & Wire Housings 3P HOUSING W/LCK RMP SL156 Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;3;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Plug; wire-board; female; PIN:3; w/o terminals; 3.96mm; for cable Socket housing, straight 3P, 640250-3, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 3 路 直 母 压接连接器外壳 03P SL156 HSG W/LCK RAMP NATL
640250-6
te connectivity / amp
Conn Housing RCP 6 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6 POS W/RAMP SL-156 6w housing without polarising tabs Headers & Wire Housings 6P HSG W/LCK RMP SL156 Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;6;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 6P, 640250-6, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 6 路 直 母 压接连接器外壳 06P SL156 HSG W/LCK RAMP NATL
08-30466-0050G
sl power electronics
Cover For GLC50 Power Supply COVER FOR GLC50 POWER SUPPLY PowerSupply,Accessory,ChassisandCoverForGLC50Series
