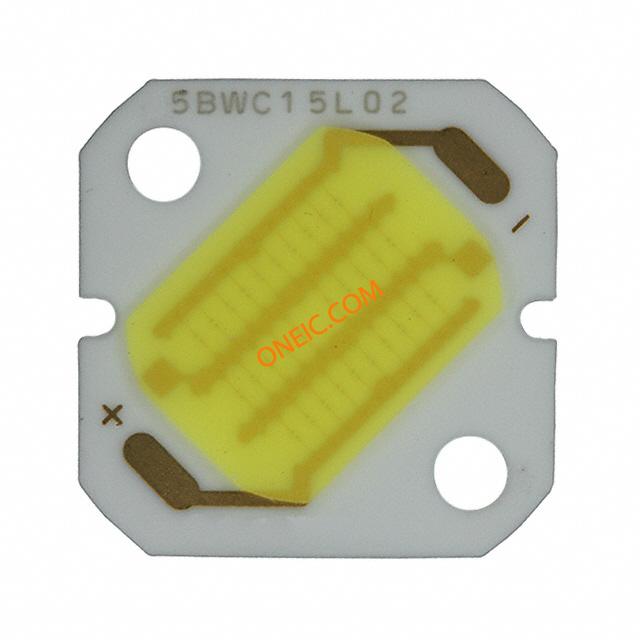

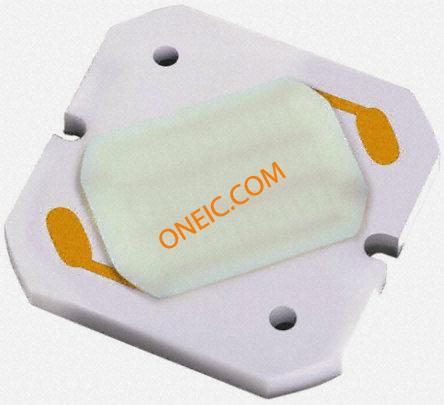

GW5BWC15L02
| 制造商 | |
| 描述 | LED Lighting Modules 3.5 Watt LED Module Normal White LED Uni-Color White 2-Pin Tray LED MOD 3.5W NORMAL WHITE LED module neutral white 5000K/280lm |
| 分类 |
商业参数
| 产品 | LED Modules | 产品类别 | LED Lighting Modules |
| 标准包装数量 | 400 | 工厂包装数量 | 400 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电压 | 10.2V | 光束角 | 120 deg |
| 波长 | 5000K | 灯输出 | Yes |
| 光通量 | 280 lm | 额定功率 | 3.5 W |
| 输出电流 | 360mA | 驱动电路 | No |
| LED正向电流 | 360 mA | LED正向电压 | 10.2 V |
| 最大额定电流 | 360mA | 主波长 | 5000 K |
| 最大功耗 | 4400 | 峰值脉冲电流（10/1000µs） | 400 |
| 栅极触发电压 Vgt (最大) | 5 | ||
机械参数
| 尺寸 | 18 mm x 18 mm x 2 mm | 颜色 | White |
| 宽度 | 18 mm | 高度 | 2 mm |
| 长度 | 18 mm | LED颜色 | White |
| 包装方式 | Tray | 灯颜色 | 5000K |
| 安装类型 | Screw Mount | 安装样式 | Top Mount |
| 引脚数 | 2 | 连接器用途 | No |
| 磁芯材质 | InGaN | 包装数量 | 18 x 18mm |
| 背景色 | 5000K | 照明颜色 | Cool White |
| 位数 | 2 | 显色指数（CRI） | 80 |
产品信息
| 类型 | Uni-Color | 配置 | Square |
| LED数量 | 30 | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | 90 |
| 光通量 @ 电流/温度 | 280 lm | ||
