点击放大查看

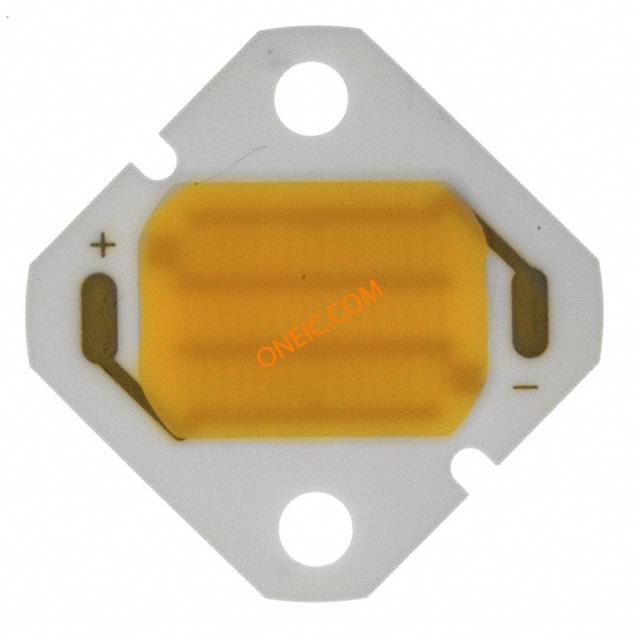

GW5BDF15L00
| 制造商 | |
| 描述 | LED Uni-Color White 2-Pin LED Lighting Modules Zenigata 2800K 7 Watt LED MOD 7WATT ZENIGATA 2800K LEDMODULE,GW5BDF15L00 |
| 分类 |
商业参数
| 产品 | LED Modules | 产品类别 | LED Lighting Modules |
| 标准包装数量 | Trays | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电压 | 10.2V | 光束角 | 120 deg |
| 波长 | 2800K | 灯输出 | Yes |
| 光通量 | 400 lm | 额定功率 | 6.7 W |
| 输出电流 | 640mA | 驱动电路 | No |
| 供电电压 | 10.2V | LED正向电流 | 640 mA |
| LED正向电压 | 10.2 V | 最大额定电流 | 640mA |
| 主波长 | 2800 K | 最大功耗 | 8000 |
| 峰值脉冲电流（10/1000µs） | 700 | 栅极触发电压 Vgt (最大) | -15 |
机械参数
| 尺寸 | 18 mm x 18 mm x 2 mm | 颜色 | White |
| 宽度 | 18 mm | 高度 | 2 mm |
| 长度 | 18 mm | 包装方式 | Reel |
| 灯颜色 | 2800 K | 透镜样式 | Rectangular |
| 安装类型 | Screw | 连接器类型 | No |
| 安装样式 | Top Mount | 连接器用途 | No |
| 磁芯材质 | InGaN | 总长度 | 18 |
| 照明颜色 | Warm White | 位数 | 2 |
| 外壳尺寸-插件 | 2 | 显色指数（CRI） | 69 |
产品信息
| 类型 | Uni-Color | 配置 | Square |
| LED数量 | 48 | 每IC通道数 | Square |
| 印刷电路板数量 | 2 | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | 90 |
| 光通量 @ 电流/温度 | 190 lm | ||
