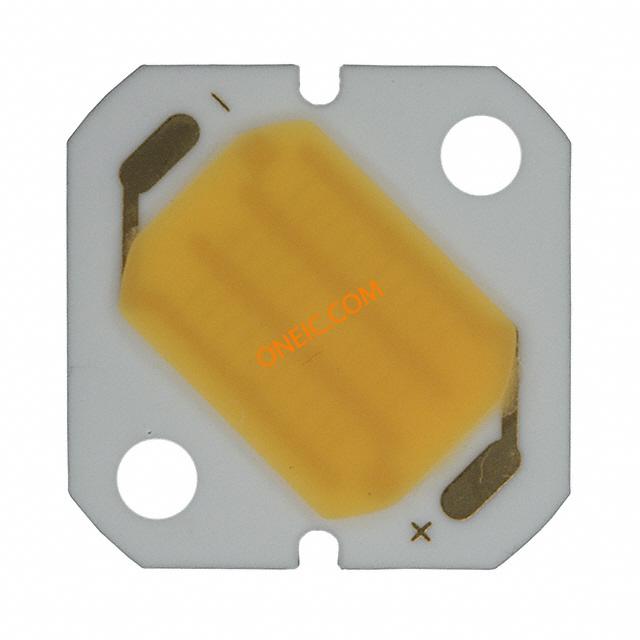

GW5BDC15L02
| 制造商 | |
| 描述 | LED Uni-Color White 2-Pin Tray LED Lighting Modules 3.5 Watt LED Module Light Bulb Color LED MOD 3.5WATT ZENIGATA 2800K LED, 200LM, W-WHITE |
| 分类 |
商业参数
| 产品 | LED Modules | 产品类别 | LED Lighting Modules |
| 标准包装数量 | 400 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85414010 | ||
电气参数
| 电压 | 10.2V | 光束角 | 120 deg |
| 波长 | 2800K | 灯输出 | Yes |
| 最大功率 | :Square | 光通量 | 200 lm |
| 额定功率 | 3.6 W | 输出电流 | 360mA |
| 驱动电路 | No | 供电电压 | :10.2V |
| LED正向电流 | 360 mA | LED正向电压 | 10.2 V |
| 最大额定电流 | 360mA | 主波长 | 2800 K |
| 最大功耗 | :4.4W | 反向恢复时间（trr） | :-5V |
| 正向电压（Vf）最小值 | :8.5V | 直流正向电流（If）（最大） | :400mA |
| 峰值脉冲电流（10/1000µs） | 400 | 栅极触发电压 Vgt (最大) | 5 |
机械参数

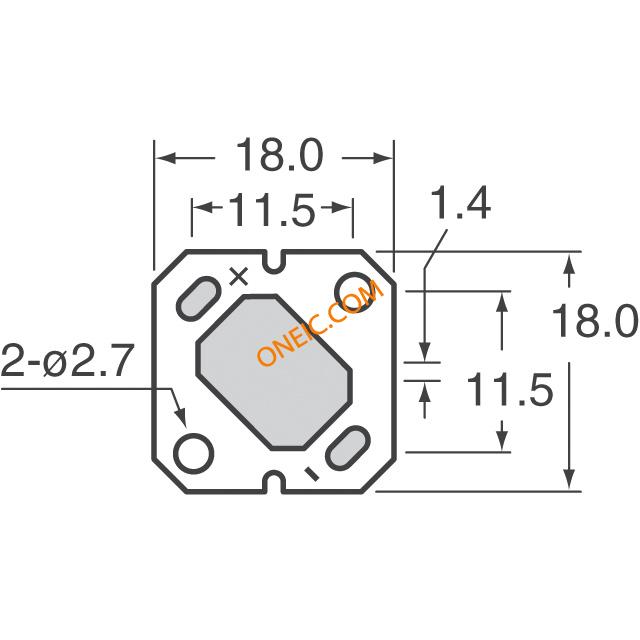

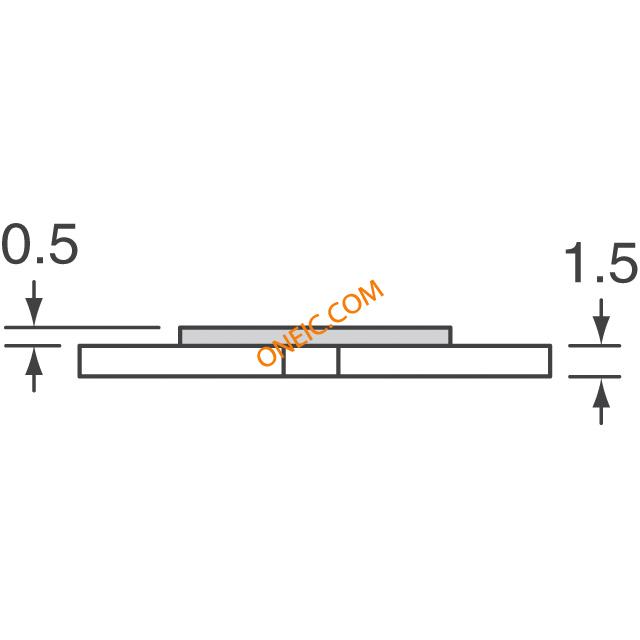

| 尺寸 | 18 mm x 18 mm x 2 mm | 颜色 | White |
| 深度 | :18mm | 宽度 | 18 mm |
| 高度 | 2 mm | 长度 | 18 mm |
| 重量 | 0.002 | LED颜色 | :Warm White |
| 包装方式 | Tray | 灯颜色 | 2800K |
| 安装类型 | :SMD | 安装样式 | Top Mount |
| 引脚数 | :2 | 光学材料（应为封装材料） | :Array |
| 连接器用途 | No | 磁芯材质 | InGaN |
| 照明颜色 | Warm White | 位数 | 2 |
| 显色指数（CRI） | 69 | ||
产品信息
| 类型 | Uni-Color | 系列 | :- |
| 色温 (K) | :3050K | 配置 | Square |
| LED数量 | 30 | ||
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | :-30°C |
| 光通量 @ 电流/温度 | 190 lm | ||
