点击放大查看

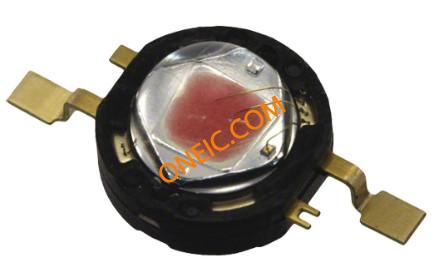

R42180
| 制造商 | Seoul Semiconductor Co., Ltd. |
| 描述 | LED Uni-Color Red 2-Pin SMD T/R High Power LEDs - Single Color Red 625nm 3.8 Watt 48lm LED RED 625NM WTR CLR SMD P4 Z-Power LED Red 48 lumen typical Power LED red, R42180, Seoul Semiconductors |
| 分类 |
商业参数
| 其他名称 | 897-1023-2 | 产品类别 | High Power LEDs - Single Color |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 波长 | 625 nm | 光通量 | 48 lm |
| 额定功率 | 3.8 W | 视角 | 130 ° |
| 额定电压 | 2.7V | 输出电流 | 350mA |
| 供电电压 | 2.3V | LED正向电流 | 800 mA |
| LED正向电压 | 2.3 V | 最大额定电流 | 800mA |
| 主波长 | 625 nm | 光效 @ 测试电流 | 60 lm/W |
| 25°C时测试电流下的光通量 | 48 lm (Typ) | 光通量 @ 85°C, 测试电流 | 31 lm |
机械参数
| 颜色 | Red | LED颜色 | Red |
| 包装方式 | Reel | 透镜样式 | Circular |
| 发光颜色 | red | 安装类型 | Surface Mount |
| 安装样式 | Top Mount | 引脚数 | 2 |
| 封装形式 | 2SMD | 透镜样式/尺寸 | 130° |
| 包装数量 | 8 Dia. x 5.08mm | 照明颜色 | Red |
产品信息
| 类型 | Uni-Color | 系列 | Z Power |
| LED数量 | 1 | 输出配置 | Surface Mount |
| 入射角（AOI） | 125 | ||
环境参数
| 工作温度 | + 85 C | 封装热阻 | 9°C/W |
| 光通量 @ 电流/温度 | 106 lm | ||
