N42180

制造商	Seoul Semiconductor Co., Ltd.
描述	LED Uni-Color White 2-Pin SMD T/R P4 WARM WHITE EMIT, MIN 70LM, TYP 93CRI Power LED; 4W; white warm; 60-70lm; 120° sale Power LED warm white, N42180, Seoul Semiconductors
分类	光电子学分立LED指示灯高亮LED

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Tape & Reel

合规参数

SVHC

:No SVHC (20-Jun-2013)

海关税号

85414010

电气参数

灯类型	:-	光通量	72 lm
额定功率	4W	视角	126 °
供电电压	:4V	LED正向电流	:SMD
LED正向电压	:3.25V	最大功耗	:3.2W
直流正向电流（If）（最大）	:800mA

机械参数

颜色	White	重量	0.01
LED颜色	:Warm White	灯颜色	3000 K
透镜样式	Circular	安装类型	:SMD
安装样式	Top Mount	引脚数	:2
封装形式	2SMD	包装数量	50
显色指数（CRI）	:93

产品信息

SPG	50	类型	Uni-Color
系列	:P4	色温 (K)	:3000K
二极管类型	power LED	LED数量	1
单元数量	1

环境参数

工作温度

:85°C

文档与媒体

PDF 文档

1444587.pdf

相关型号

AP8802FNG-7

diodes, inc

Conv DC-DC Single Step Down 8V to 48V 10-Pin DFN EP T/R LED Lighting Drivers 28V, 350mA LED DC/DC Converter LEDDr 48V 1000mA DFN3030 SMD IC LED DRIVER HIGH BRIGHT 10DFN IC, DC/DC LED DRIVER, 8 BIT, DFN3030-10 1A LED Step-Down Converter LEDDr 48V 1A DFN3030 SMD

¥4.9300

详情

AP8803WTG-7

diodes, inc

LED DRVR 7Segment 9V/12V/15V/18V/24V 5-Pin TSOT-23 T/R LED Lighting Drivers BUCK LED DRIVER 30V 3W LEDDr 30V 1000mA TSOT23-5 SMD IC LED DRIVER CONN CURR TSOT23-5 IC, LED DRIVER, BUCK, 1A, 5TSOT23 Cost effective 3W LED driver for consumer applications

¥7.1276

详情

FA10789_LZ1-REC

ledil

Lens From Material Optical Grade PMMA With High UV And Temperature Resistance

¥15.4632

详情

FA10790_LZ1-D

ledil

Lens From Material Optical Grade PMMA With High UV And Temperature Resistance

¥74.3104

详情

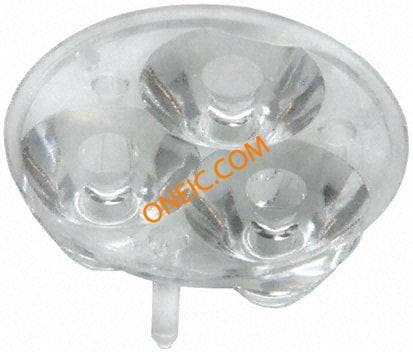

C10257_LAIKA-3-S
