点击放大查看
B42180
| 制造商 | Seoul Semiconductor Co., Ltd. |
| 描述 | LED Uni-Color Blue 2-Pin SMD T/R High Power LEDs - Single Color Blue 465nm 3.8 Watt 22lm LED BLUE 465NM WTR CLR SMD P4 Z-Power LED Blue 22 lumen typical Power LED blue, B42180, Seoul Semiconductors Seoul Semiconductor Z-Power 系列 蓝色 (465 nm 主波长) LED, , 3.25 V, 130 °视角, 表面安装 |
| 分类 |
商业参数
| 其他名称 | 897-1029-2 | 产品类别 | High Power LEDs - Single Color |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| LED | 1 | 灯类型 | 透明 |
| 波长 | 465 nm | 光通量 | 22 lm |
| 额定功率 | 3.8 W | 视角 | 130 ° |
| 额定电压 | 4.1V | 输出电流 | 350mA |
| 供电电压 | 3.25V | 峰值波长 | 465 nm |
| LED正向电流 | 350 mA | LED正向电压 | 3.25 V |
| 最大额定电流 | 800mA | 主波长 | 465 nm |
| 光效 @ 测试电流 | 19 lm/W | 25°C时测试电流下的光通量 | 22 lm (Typ) |
| 光通量 @ 85°C, 测试电流 | 20 lm | ||
机械参数
| 颜色 | Blue | LED颜色 | Blue |
| 包装方式 | Reel | 透镜样式 | Circular |
| 发光颜色 | blue | 安装类型 | Surface Mount |
| 安装样式 | Top Mount | 引脚数 | 2 |
| 封装形式 | 2SMD | 透镜样式/尺寸 | 130° |
| 包装数量 | 8 Dia. x 5.08mm | 尺寸/外形 | 7.4 x 7.4 x 5.08mm |
| 照明颜色 | Blue | 触点数 | 2 |
产品信息
| 类型 | Uni-Color | 系列 | Z Power |
| 光学元件形状 | 圆形 | LED数量 | 1 |
| 输出配置 | Surface Mount | 入射角（AOI） | 125 |
环境参数
| 工作温度 | + 85 C | 封装热阻 | 10°C/W |
| 光通量 @ 电流/温度 | 53 lm | ||
相关型号
803126
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON K2 BRD STAR LED IMS LUXEON K2
803267
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON REBEL ARRAY LED IMS LUXEON REBEL
803291
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR NICHIA PWR LED 6.5X5 BOARD LED IMS NICHIA PWRLED
803129
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR SEOUL P4 BOARD LED IMS SEOUL SEMI Z-PWR
803269
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY SEOUL P4 ARRAY LED IMS SEOUL SEMI ZPWR
803790
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY CREE MC-E ARRAY LED IMS CREE XLAMP MC-E
803266
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON K2 ARRAY LED IMS LUXEON K2
803265
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON I III & V ARRAY LED IMS LUXEON I/III/V
803127
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON REBEL BRD STAR LED IMS LUXEON REBEL ThermalClad Star IMS Lumileds Rebel
803289
Bergquist Company
Thermal Substrates - MCPCB 1 X 17 SQ. STRIP SEOUL P4 STRIP LED IMS SEOUL SEMI Z-POWER
803125
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON I III & V BRD STAR LED IMS LUXEON I/III/V
803119
Bergquist
BOARD LED IMS SEOUL SEMI Z-PWR

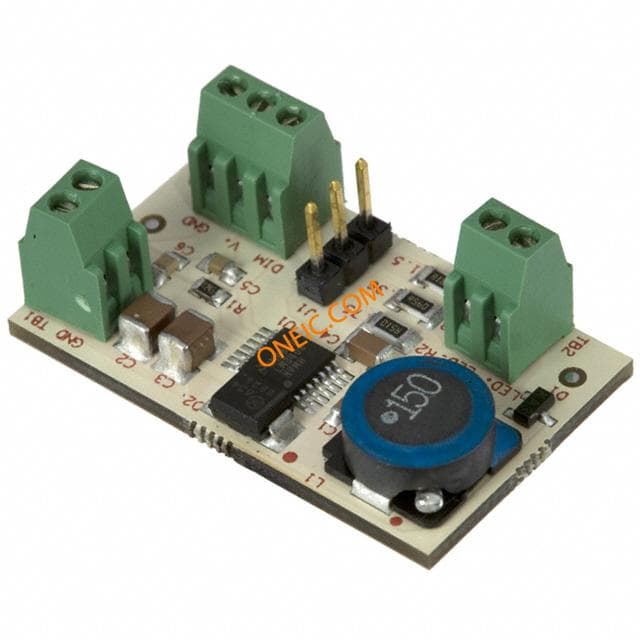

DKSB1003A
