点击放大查看

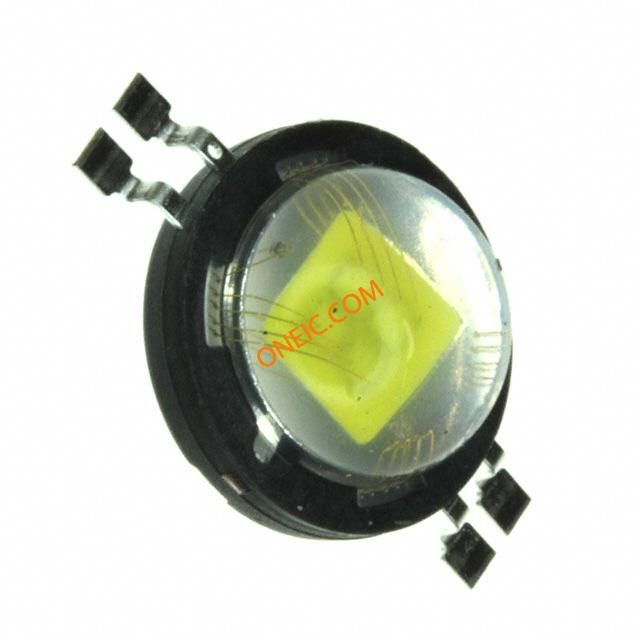

W724C0-C
| 制造商 | Seoul Semiconductor Co., Ltd. |
| 描述 | LED COOL WHITE 6300K WTR CLR SMD |
| 分类 |
商业参数
| 其他名称 | 897-1013-2 | 标准包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 视角 | 130° | 输出电流 | 2.8A |
| 供电电压 | 3.6V | 最大额定电流 | 2.8A |
| 光效 @ 测试电流 | 69 lm/W | 25°C时测试电流下的光通量 | 700 lm (Typ) |
| 光通量 @ 85°C, 测试电流 | 595 lm | ||
机械参数

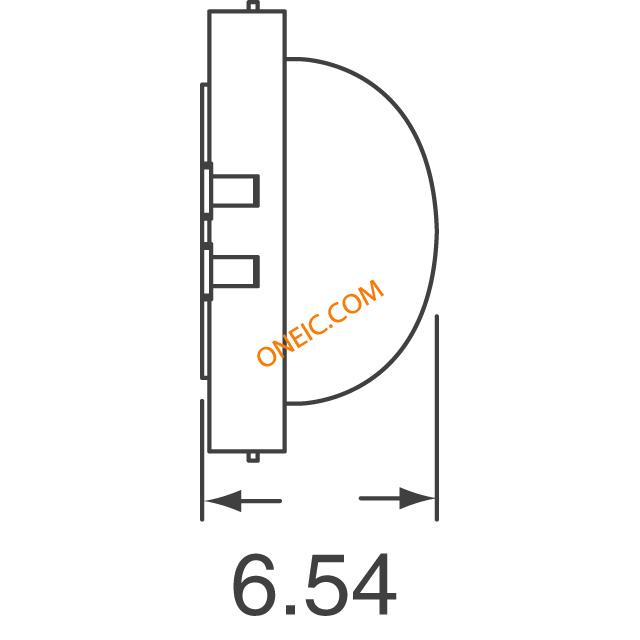

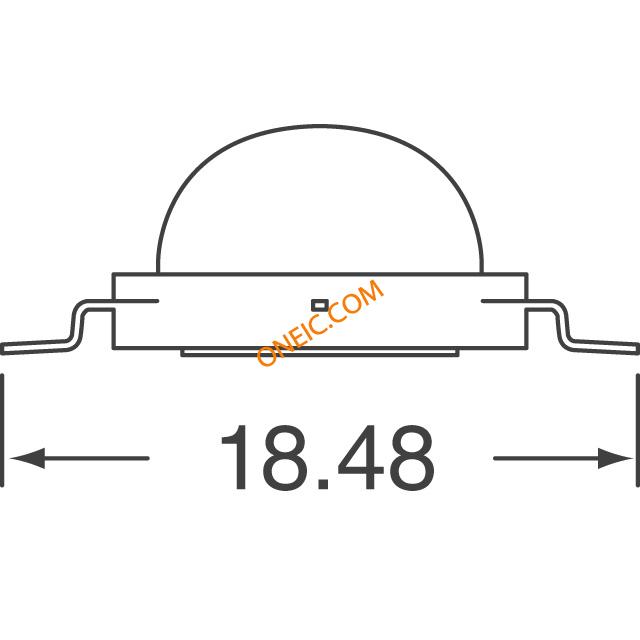

| 包装方式 | Tape & Reel (TR) | 封装形式 | 12.00mm Dia x 6.54mm H |
| 显色指数（CRI） | 70 | ||
产品信息
| 色温 (K) | 6300K (Typ) | ||
环境参数
| 封装热阻 | 3°C/W | 光通量 @ 电流/温度 | 700 lm |
文档与媒体
相关型号
803126
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON K2 BRD STAR LED IMS LUXEON K2
803267
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON REBEL ARRAY LED IMS LUXEON REBEL
803291
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR NICHIA PWR LED 6.5X5 BOARD LED IMS NICHIA PWRLED
803269
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY SEOUL P4 ARRAY LED IMS SEOUL SEMI ZPWR
803790
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY CREE MC-E ARRAY LED IMS CREE XLAMP MC-E
803266
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON K2 ARRAY LED IMS LUXEON K2
803265
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON I III & V ARRAY LED IMS LUXEON I/III/V
803127
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON REBEL BRD STAR LED IMS LUXEON REBEL ThermalClad Star IMS Lumileds Rebel
803805
Bergquist Company
Thermal Substrates - MCPCB 1 X 17 SQ. STRIP SEOUL P7 STRIP LED IMS SEOUL SEMI P7
803125
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON I III & V BRD STAR LED IMS LUXEON I/III/V

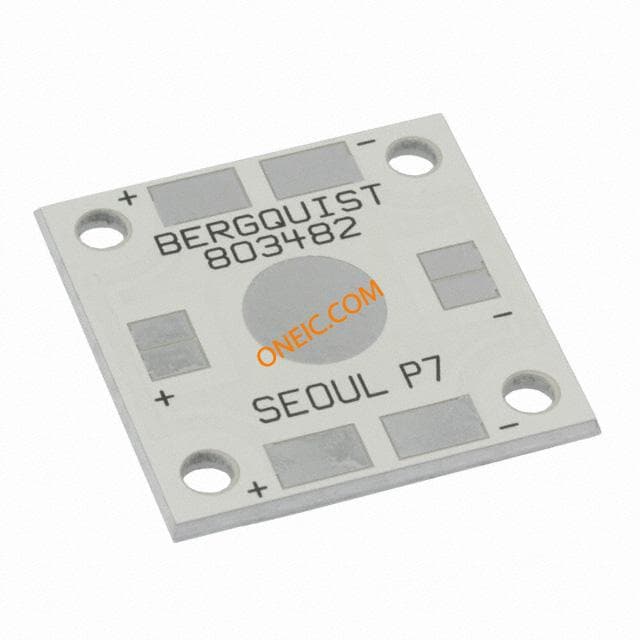

803482
