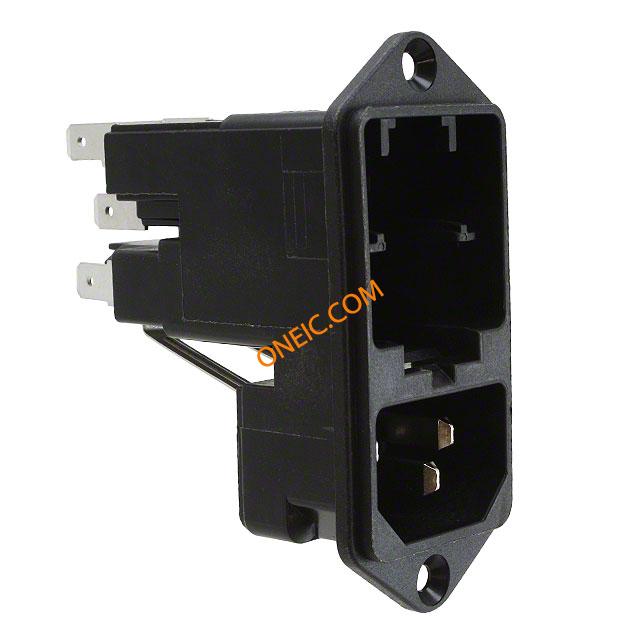

KE10.6100.151
| 制造商 | |
| 描述 | Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port K G-Connector combi 10A MOD PWR ENTRY 2POLE QC SCREW PNL Module; Pwr Entry;AC Inlet; Series-Parallel Voltage Selection;Screw-On Mt AC Power Entry Modules CASING 2-P FUSING INLET, IEC, C14, KE, 10A Module,PwrEntry;ACInlet,Series-ParallelVoltageSelection;Screw-OnMt |
| 分类 |
商业参数
| 最小起订量 | 20 | 产品 | Inlets |
| 交货时间 | 20 Days | 单位包装 | 20 |
| 子类别 | Power Entry Module | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | ULRecognized,CSACertified,VDEApproved,SEVApproved,SemkoApproved | 海关税号 | 85369010 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 125V |
| 频率 | 50Hz | 滤波器类型 | No |
| 额定电压 | 250 V | 极数 | 2 |
| 开关功能 | Switched | 介电强度 | >3kVAC(L-N),>4kVAC(L/N-PE)kVAC |
| 最大额定电流 | 10 A | 最小输入电压 | 250 Vac |
机械参数
| 重量 | 1.358048 oz | 端接方式 | Solder Lug |
| 安装类型 | Flange Mount | 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| 接触镀层 | Tin | 安装样式 | Snap In |
| 连接器样式 | IEC 320-C14 | 保险丝座类型 | Sold Separately |
| 面板厚度 | 8mm | 壳体材料 | Thermoplastic |
| 端接样式 | Quick Connect - 0.187" (4.7mm) | 触点数 | 3 |
| 面板开孔形状 | 27.5×61.5mm | 接触件端接 | :Quick Connect |
| 位数 | 3 | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | Unfiltered | 带保险丝 | Yes |
| 连接器性别 | :Plug | 系列 | KE |
| 产品特性 | Fuse Holder, Switch, Voltage Selector | 匹配码 | KE106100151 |
| 固件版本 | Medical | 标准交期 | 6 weeks |
| 应用细节 | Foruseinequipments | ||
环境参数
| 工作温度 | - 25 C to + 70 C | ||
