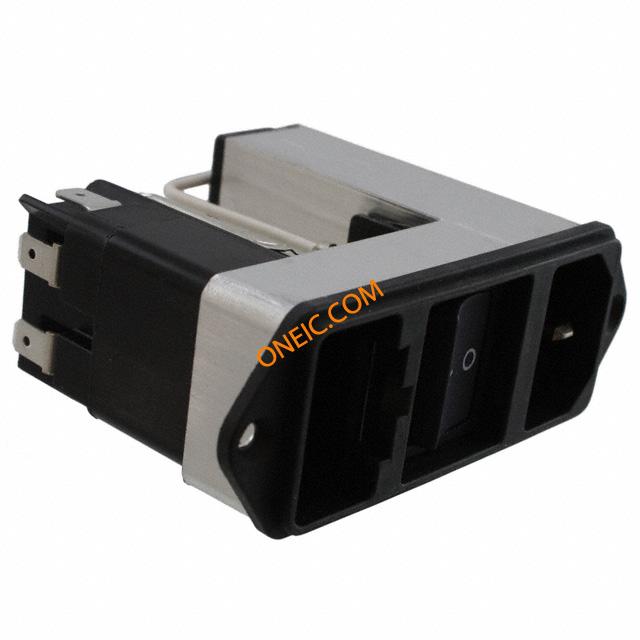

CD24.4101.151

点击放大查看

CD24.4101.151

制造商
Schurter Holding AG
描述
Power Entry Module Filtered M 3 POS 250VAC 2A Switch/Fuse/Voltage Selector ST 1 Port CD24.4101.151 POWER MODULE MOD PWR 5-FUNCTION 2A 4.8QC SCRW FUSEHOLDER;69.5 X 83.5 X 30mm;2A;STANDARD AC Power Entry Modules FILTER 2A 2POL INLET FILTER, IEC, C14, CD, 2A FUSEHOLDER;69.5X83.5X30mm;2A,STANDARD
分类
连接器解决方案电源输入连接器电源输入连接器
对参数有疑问？问 AI 助手

商业参数

最小起订量10产品Inlets
交货时间49 Days单位包装10
子类别Power Entry Module产品类别AC Power Entry Modules
标准包装数量Bulk工厂包装数量10

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
海关税号85363090汽车级NO
无铅定义RoHS-conform材料阻燃等级UL 94 V-0

电气参数

电流2A电压250V
电感量2×4mH电容:0.068µF
滤波器类型General Purpose额定电压125 V / 250 V
极数2开关功能Switched
电感量范围:4mH漏电流<0.5mA
介电强度>1.7kVDC(L-N),>2.7kVDC(L/N-PE)最大额定电流2 A
最小输入电压250 Vac漏电流（IS(off)）（最大）:500µA

机械参数

重量2.892465 oz端接方式Solder Lug
安装类型Flange Mount连接器类型IEC/EN 60320-1/C14|UL 498|CSA C22.2
安装样式Screw保险丝座类型Sold Separately
面板厚度8mm壳体材料Thermoplastic
端接样式Quick Connect触点数3
面板开孔形状26.5×75.5mm

产品信息

类型Filtered带保险丝Yes
连接器性别Male系列CD
产品特性Fuse Holder, Switches, On/Off, Non-Illuminated, Voltage Selector匹配码CD
固件版本2 POLE行业别名FKSV-55-0002
标准交期6 weeks

环境参数

工作温度- 25 C to + 85 C

文档与媒体

PDF 文档
RoHS, EMC Products
压缩文件
CD Series.stp
压缩文件
CD Series.igs
压缩文件
CD Series.x_b
压缩文件
CD Series.wrl
PDF 文档
typ_CD.pdf
PDF 文档
typ_CD.pdf
PDF 文档
CD Medical Version
PDF 文档
typ_cd.pdf
