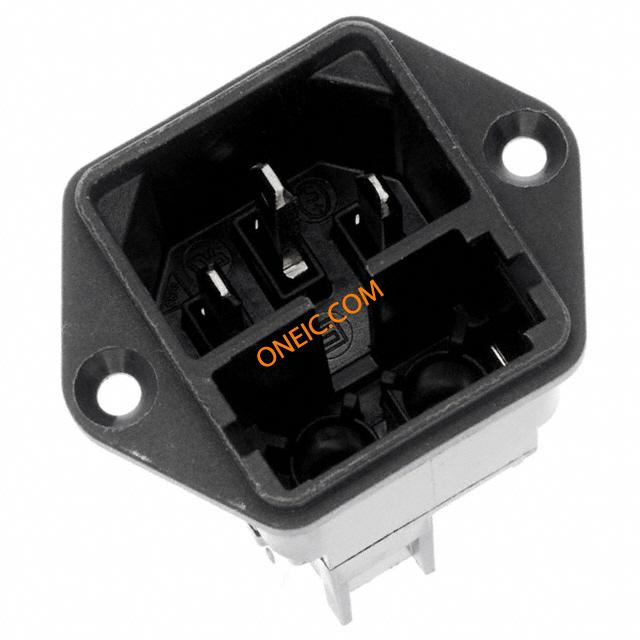

4301.0501

点击放大查看

4301.0501

制造商
Schurter Holding AG
描述
Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse ST 1 Port 4301.0501.BF POWERENTRYMODUL MODULE PWR ENTRY SCREW-ON Module; Pwr Entry;Appliance Inlet;Screw-On Mt;Quick Conn.;10A;250VAC;50Hz AC Power Entry Modules SCREW-ON 2-POLE 10A INLET, IEC, SWITCHED Module,PwrEntry;ApplianceInlet;Screw-OnMt;QuickConn.;10A;250VAC;50Hz Connector: IEC 60320,AC mains; KEA; C14 (E),2x fuse; socket; male Plug C14 Faston 4.8 x 0.8 mm 10 A/250 VAC black Screw mounting L + N + PE, 4301.0501, Schurter Schurter C14 螺钉安装 直向 插头 IEC 连接器, 快速连接端接, 熔断器尺寸5 x 20mm, 额定10A, 250 V 交流 4301.0501.BF POWER ENTRY MODUL
分类
连接器解决方案电源输入连接器电源输入连接器
对参数有疑问？问 AI 助手

商业参数

最小起订量50产品Inlets
交货时间20 Days单位包装50
子类别Power Entry Module产品类别AC Power Entry Modules
标准包装数量Bulk工厂包装数量50

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
标准ULRecognized,CSACertified,VDEApproved海关税号85361010
汽车级NO无铅定义RoHS-conform
认证机构:CCC材料阻燃等级UL 94 V-0

电气参数

电流10A电压250V
频率50Hz滤波器类型No
额定电压250 V极数2
开关功能Not Switched介电强度>3kVAC(L-N),>4kVAC(L/N-PE)kVAC
最大额定电流10 A最小输入电压250 Vac
连接器类型 - 电压输入without fusedrawer

机械参数

重量0.617294 oz交流输出口:1
端接方式Solder Lug安装类型Flange Mount
连接器类型IEC/EN 60320-1/C14|UL 498|CSA C22.2安装样式Screw
连接器样式IEC 320-C14保险丝座类型Sold Separately
面板厚度8mm壳体材料Thermoplastic
包装数量50连接器 - 电缆socket
端接样式Quick Connect - 0.187" (4.7mm)连接器颜色:Black
触点数3面板开孔形状27.5×31.5mm
接触件端接:Quick Connect位数3
外壳与棱镜材料:Thermplastic UL94V-0第一连接器安装类型:Panel

产品信息

SPG50类型Unfiltered
带保险丝Yes连接器性别:Plug
系列KEA产品特性Fuse Holder
保险丝尺寸5x20mm匹配码KEA
适配器系列KEA单元数量1
固件版本Medical标准交期8 weeks

环境参数

工作温度- 25 C to + 70 C

文档与媒体

PDF 文档
4301.x Fusedrawer Slot 24/Jan/2013
压缩文件
KEA Series.igs
压缩文件
KEA Series.stp
压缩文件
KEA Series.wrl
压缩文件
KEA Series.x_b
PDF 文档
typ_KEA.pdf
PDF 文档
KEA IEC Appliance Connector
PDF 文档
typ_KEA.pdf
PDF 文档
typ_kea.pdf
