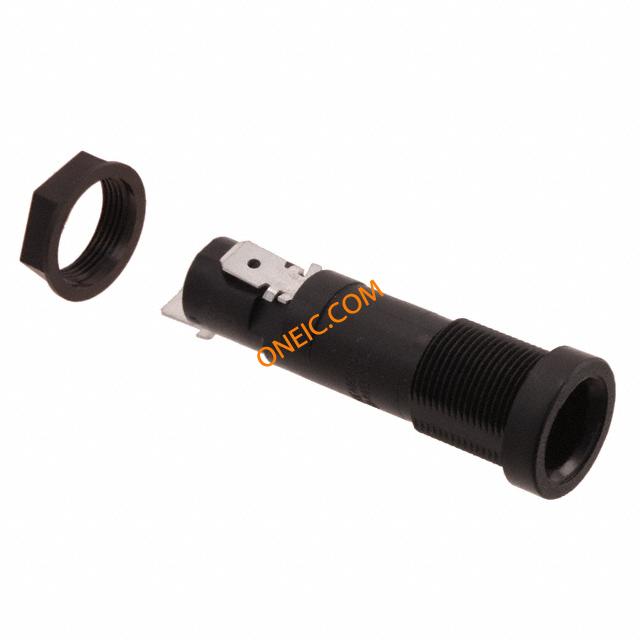

0031.1694
| 制造商 | |
| 描述 | Fuse Holder 20A 250VAC Quick Connect Panel Mount Bulk Fuse Holders FEU HOLDER SPEC. FEU SOCKEL 5X20/6.3X32 IP 40 FUSE HLDR CART 250V 20A PNL MNT Fuseholder,FEU,6.3X32MM,PanelMount Fuse Holder FEU HOLDER SPEC. |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Fuse Holders |
| 交货时间 | 20 Days | 单位包装 | 100 |
| 子类别 | Fuse Accessories | 产品类别 | Fuse Holders |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电压 | 250V | 额定电压 | 250 V |
| 极数 | 1 | 最大额定电流 | 10 A |
机械参数
| 颜色 | Black | 重量 | 0.186952 oz |
| 包装方式 | Bulk | 安装类型 | Panel Mount |
| 接触镀层 | Tin | 安装样式 | Panel |
| 保险丝座类型 | Holder | 触头材料 | Copper Alloy |
| 端接样式 | Quick Connect - 0.187" (4.7mm) | ||
产品信息
| 类型 | Fuse Holder | 系列 | FEU |
| 保险丝尺寸 | 5mm x 20mm, 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) | 保险丝类型 | Cartridge |
| 照明类型 | No | 制造商全称 | Schurter |
| 电路数 | 1 | 射频系列/标准 | 0031 |
| 适用产品/相关产品 | 5mm x 20mm, 3AG | ||
环境参数
| 工作温度 | - 40 C to + 85 C | ||
