点击放大查看

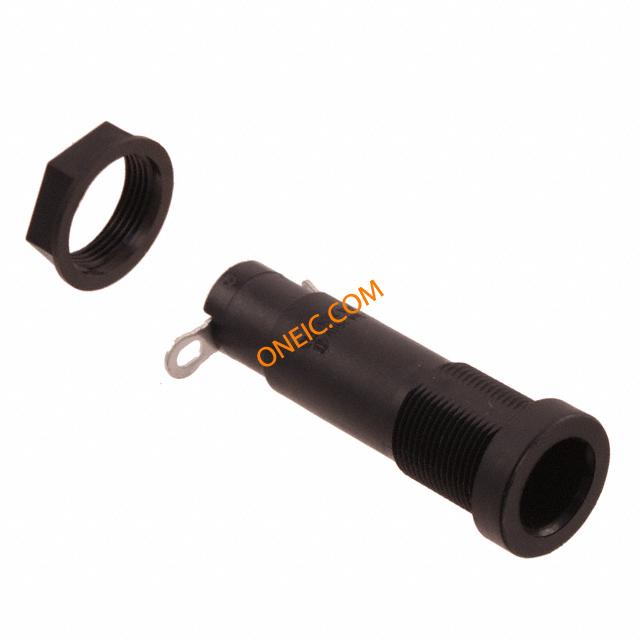

0031.1673
| 制造商 | |
| 描述 | Fuse Holder 20A 250VAC Solder Lug Panel Mount Bulk Fuse Holders FEU FUSE HOLDER w/o cap FEU Holder IP40 Solder w/o cap FUSE HLDR CART 250V 20A PNL MNT FUSE-SOCKET FEU 5X20 & 6.3X32 FUSE HOLDER, 6.3 X 32MM, PANEL MOUNT FUSE-SOCKETFEU5X20&6.3X32 Fuse holder FEU ø 5 x 20/6.3 x 32 mm, 0031.1673, Schurter Fuse Holder FEU FUSE HOLDER w/o cap |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Fuse Holders |
| 交货时间 | 42 Days | 单位包装 | 100 |
| 子类别 | Fuse Accessories | 产品类别 | Fuse Holders |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | CSAC22.2no.39/IEC60127-6/UL4248-1/UL512 |
| 海关税号 | 85411000 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 认证机构 | VDE/UR |
电气参数
| 电压 | 250V | 电容 | extraY/N |
| 额定电压 | 250 V | 极数 | 1 |
| 额定交流电压 | :250V | 最大额定电流 | 10 A |
| 每极负载侧连接方式 | :Solder Lug | ||
机械参数
| 颜色 | Black | 长度 | 45mm |
| 重量 | 0.172842 oz | 直径 | 16.2mm |
| 包装方式 | Bulk | 端接方式 | SOLDERLUG |
| 安装类型 | Panel Mount | 接触镀层 | Tin |
| 安装样式 | Panel | 保险丝座类型 | Holder |
| 本体材料 | Thermoplastic | 锥体材料 | Cu |
| 触头材料 | Copper Alloy | 刀片材料 | CopperAlloy,Tin-Plated |
| 端接样式 | Solder Lug | 接线端子类型 | Solder |
产品信息
| 类型 | Fuse Holder | 系列 | FEU |
| 保险丝尺寸 | 5mm x 20mm, 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) | 保险丝类型 | 5x20/6x32 |
| 匹配码 | FUHSOCKETSAFESOLDERLUG | 照明类型 | No |
| 制造商全称 | FEUSeries | 标准交期 | 6 weeks |
| 电路数 | 1 | 射频系列/标准 | 0031 |
| 附带电池数量 | :1 | 适用产品/相关产品 | 5mm x 20mm, 3AG |
环境参数
| 防护等级 | YesY/N | 工作温度 | - 40 C to + 85 C |
