点击放大查看

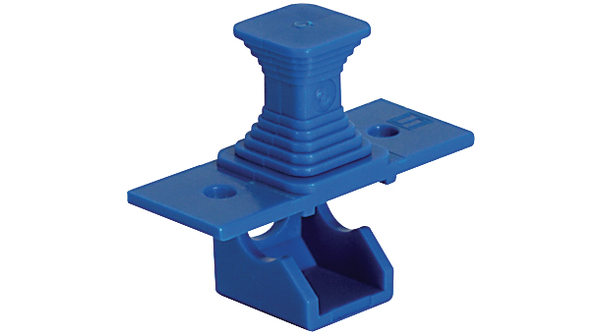

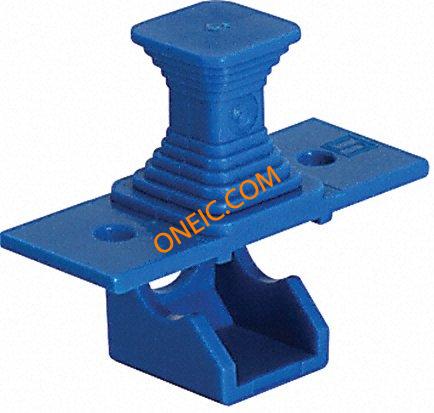

0853.1203
| 制造商 | |
| 描述 | FUSE CARRIER OGN 5X20MM Carriage blue for OGN,OGN-SMD OGN-SMD Carriage blue Fuse Holders Accessories OGN-SMD Carriage FUSE CARRIAGE, 5X20MM, BLUE Fuse carriage with handle ø 5 x 20 mm OGN, 0853.1203, Schurter |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Adapters |
| 交货时间 | 63 Days | 单位包装 | 100 |
| 子类别 | Not Specified | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | ||
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 10A |
| 每极负载侧连接方式 | :Surface Mount | ||
机械参数
| 深度 | :9.6mm | 重量 | 0.042329 oz |
| 基体材料 | Thermoplastic | 保险丝座类型 | :Fuse Carrier |
| 触头材料 | Tin Plated Copper Alloy | 总长度 | :25mm |
产品信息
| 类型 | Carriage | 系列 | * |
| 保险丝尺寸 | 5 x 20mm | 保险丝类型 | Cartridge |
| 匹配码 | 08531203 | 标准交期 | 10 weeks |
| 附带电池数量 | :1 | 适用产品/相关产品 | Fuse Holders, OGD, OGD-SMD |
环境参数
| 工作温度 | :85°C | ||
