ZB5AW0B11
| 制造商 | |
| 描述 | 24 V LED ILLUMI. P.B BOD Pushbutton Switches WHITE 24V PROTECTED LED W/1 N/O CONTACT Schneider Electric component ZB5AW0B11: white light block with body/fixing collar with integral LED 24V 1NO Schneider Electric XB5 系列 接触块和照明块, 24 V 交流/直流, 白色 |
| 分类 |
商业参数
| 交货时间 | 14 Days | 子类别 | Misc Products |
合规参数
| RoHS | Compliant | ||
电气参数
| 光源 | Protected LED | 额定电压 | 24 V 交流/直流 |
| 供电电压 | Direct | 最大额定电流 | 10 A |
| 连接器类型 - 电压输入 | (13-14)NO | ||
机械参数
| 重量 | 0.032 kg | 底座类型 | Integral LED |
| 发光颜色 | White | 行程范围 | 2.6 mm (NO changing electrical state)4.3 mm (total travel) |
| 第一连接器 | Screw clamp terminals: <= 2 x 1.5 mm ² with cable end conforming to EN 60947-1Screw clamp terminals: >= 1 x 0.22 mm ² without cable end conforming to EN 60947-1 | 触点时序 | Slow-break |
| 总深度 | 32 mm | 操作力 | 2.3 N (NO changing electrical state) |
| 螺钉头类型 | Cross head compatible with Philips no 1 screwdriverCross head compatible with pozidriv No 1 screwdriverSlotted head compatible with flat | 总宽度 | 30 mm |
| 触头材料 | 1 NO | 总高度 | 42 mm |
| 正向断开 | Without positive opening | 照明颜色 | 白色 |
| 触点数 | Standard | 夹持材料 - 镀层 | Plastic |
| 额定扭矩（oz-in / mNm） | 0.05 N.m (NO changing electrical state) | 最大瞬时扭矩（oz-in / mNm） | 0.8...1.2 N.m conforming to EN 60947-1 |
产品信息
| 外形 | 触点和照明块 | 系列 | XB5 |
| 产品子类型 | Complete body/contact assembly and light block | 附件类型 | Body & Contact Assembly |
| 测量范围 | Harmony XB5 | 单元数量 | 1 |
| 行业别名 | 785901387732, ZB5AW0B11 | 设备简称 | ZB5 |
| 适用产品/相关产品 | XB5 Series | ||
环境参数
| 机械寿命 | 5000000 cycles | ||
相关型号
ZB5AA38
Schneider Electric
PUSHBUTTON OPERATOR HEAD Pushbutton Switches FLUSH W/TRNSPRNT CAP, GRN PB HEAD FLUSH GRN FOR LEGEND Schneider Electric component ZB5AA38: green flush pushbutton head XB5 弹簧复位 按钮头, 绿色按钮

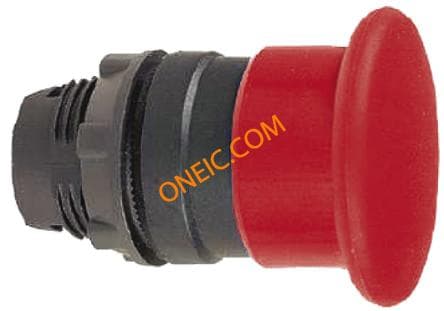

ZB5AW743
