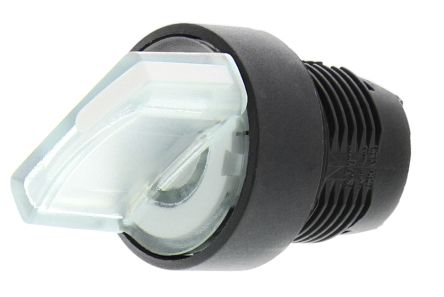

ZB5AK1213
| 制造商 | |
| 描述 | White Select. Switch Head,2pos. Stay Put Rotary Switches 2POS ILLUMINATED SELECTOR WHITE 施耐德(SCHNEIDER) 按钮 Schneider Electric component ZB5AK1213: white illuminated selector switch head Schneider Electric XB5 系列 2 位置 选择器开关头 标准手柄，白色 锁定型开关操作 |
| 分类 |
对参数有疑问？问 AI 助手
合规参数
| 标准 | CSA C22-2 No 14EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4EN/IEC 60947-5-5JIS C 4520UL 508 | 防护类型 | Class II conforming to IEC 60536 |
| 认证 | BVCSADNVGLLROS (Lloyds register of shipping)RINAUL listed | ||
电气参数
| 感应角度 | 90° | 开关功能 | 锁定型 |
| 25°C时电阻（典型） | 7000000 Pa at 55 °C,distance: 0.1 m | ||
机械参数
| 形状 | Round | 重量 | 0.016 kg |
| 发光颜色 | 是 | 触点形式 | Maintained |
| 致动器类型 | Standard Handle | 芯径 | 22mm |
| 总深度 | 43 mm | 总宽度 | 29 mm |
| 总高度 | 29 mm | 框架材料 | Plastic |
| 位数 | 2 | 安装面板厚度 | 22 mm |
产品信息
| 系列 | XB5 | 打印机名称 | XALD 1...5 cut-outsXALK 2...5 cut-outs |
| 产品子类型 | Head for illuminated selector switch | 兼容性 | Integral LED |
| 附件类型 | Lever | 测量范围 | Harmony XB5 |
| 单元数量 | 1 | 设备简称 | ZB5 |
| 工作高度 | 2 positions 90 ° | 用户配置 | White standard handle |
| 控制/显示类型 | Stay put | 其他规格 | M10 for <= 2 contacts using single blocks in front mounting with integral LEDM6 for <= 2 contacts using single blocks in front mounting with integral LED and transformerMF1 for <= 2 contacts using single blocks in front mounting with integral LEDMR1 for <= 2 contacts using single blocks in rear mounting with integral LEDM3 for <= 4 contacts using single blocks in front mounting with integral LEDM4 for <= 4 contacts using single and double blocks in front mounting with integral LED |
| 适用产品/相关产品 | 22 mm Selector Switch, XB5 Series | ||
环境参数
| 机械寿命 | 500000 cycles | NEMA 机架尺寸 | NEMA 13NEMA 4X |
| 抗冲击能力 | 30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-2750 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27 | 存储接口 | -40...70 °C |
| 防护等级 | IP69K conforming to IEC 60529 | 防护处理 | TH |
| 抗振性 | 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 | 工作温度 | -25...70 °C |
