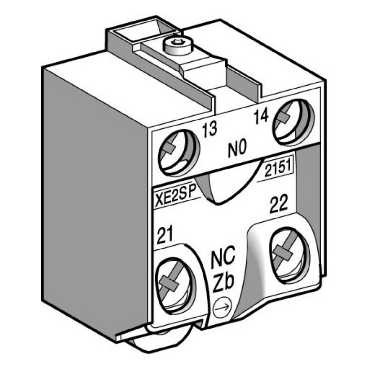

点击放大查看

XE2SP3151

制造商	Schneider Electric SE
描述	Limit Switches LIMIT SWITCH 2 CNT BLOCK 240VAC 3A XE2 Schneider Electric component XE2SP3151: limit switch contact block - 1NC+1NO - snap action
分类	开关速动开关限位开关

对参数有疑问？问 AI 助手

商业参数

交货时间

14 Days

子类别

Contact Blocks

电阻	< 25 mOhm conforming to IEC 60255-7 category 3	额定电压	500 V degree of pollution 3 conforming to IEC 60947-1300 V conforming to CSA C22-2 No 14300 V conforming to UL 508
极数	2	击穿电压（V(BR)GSS）	6 kV conforming to IEC 606646 kV conforming to IEC 60947-1
短路电流额定值（SCCR）	10 A by gG cartridge fuse

绝缘类型	Zb	基体材料	ZCT21
连接器类型	Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm ²	接触镀层	Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix AA300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
触点时序	Snap action	触头材料	Silver plated contacts
正向断开	With	中压缩操作力	0.01 mm/s

系列	Standard format	产品子类型	Limit switch contact block
兼容性	XCKT	电气寿命	5000000 cycles, DC-13 120 V, 4 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 24 V, 10 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 48 V, 7 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
测量范围	OsiSense XC	行业别名	785901981473
设备简称	XE2S
