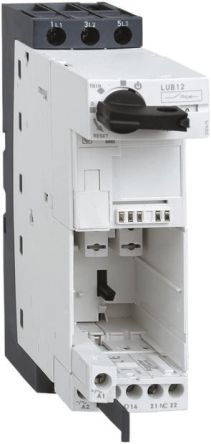

LU2B32BL
| 制造商 | |
| 描述 | Controllers 32A SELF-PR.REV.STR W/TERMS- LUC*BL 施耐德(SCHNEIDER) 继电器配件 Schneider Electric component LU2B32BL: power base - TeSys U - 32 A - 24 V DC screw clamps control Schneider Electric TeSys U-Line 系列 25 hp 电源底座 , 24 V 直流, 32 A |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 14 Days | 子类别 | Solid State Relay |
合规参数
| 标准 | CSA C22-2 No 14 type EEN 60947-6-2IEC 60947-6-2UL 508 type E with phase barrier | 认证 | ABSASEFAATEXBVCCCCSADNVGLGOSTLROS (Lloyds register of shipping)UL |
电气参数
| 电路 | 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 appendix N400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 appendix N | 频率 | 40...60 Hz |
| 隔离 | Yes | UL电压 | 230 V440 V500 V690 V |
| 额定功率 | 25 hp | I/O电压 | 70 % 500 ms conforming to IEC 61000-4-11 |
| 额定电压 | 600 V conforming to CSA C22-2 No 14600 V conforming to UL 508690 V conforming to IEC 60947-1 3 | 极数 | 3P |
| 输出电流 | 200 mA I maximum while closing with LUCM220 mA I maximum while closing with LUCA, LUCB, LUCC, LUCD75 mA I rms sealed with LUCM80 mA I rms sealed with LUCA, LUCB, LUCC, LUCD | 供电电压 | 14.5 V 24 V DC drop-out20...27 V 24 V DC in operation |
| 最大额定电流 | 21 A at 690 V23 A at 500 V32 A at <= 440 V | 工作频率 | 60 cyc/mn |
| 最小供电电压 | 10 kA 500 V4 kA 690 V50 kA 230 V50 kA 440 V | 最大功耗 | 3 W for control circuit with LUCA, LUCB, LUCC, LUCD1.8 W for control circuit with LUCM |
| 击穿电压（V(BR)GSS） | 6 kV conforming to IEC 60947-6-2 | 阻抗 - 不平衡/平衡 | 10 V/m 3 conforming to IEC 61000-4-3 |
| 滑臂电阻（欧姆）（典型） | 8 kV level 3 in open air conforming to IEC 61000-4-28 kV level 4 on contact conforming to IEC 61000-4-2 | ESR（等效串联电阻） | 2 kV class 3 serial link conforming to IEC 61000-4-44 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4 |
| 共模瞬态抗扰度（最小） | 3 ms | 集电极-发射极击穿电压（最大） | 24 V 直流 |
机械参数
| 深度 | 126 mm | 宽度 | 45 mm |
| 高度 | 224 mm | 重量 | 1.27 kg |
| 触头类型 | Type linked contacts (1 NO + 1 NC) conforming to IEC 60947-4-1Type mirror contact (1 NC) state of the power conforming to draft IEC 60947-1 | 第一连接器 | Control circuit: screw clamp terminals 1 cable 0.34...1.5 mm ² - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable 0.75...1.5 mm ² - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 1 cable 0.75...1.5 mm ² - cable stiffness: rigid - without cable endControl circuit: screw clamp terminals 2 cable 0.34...1.5 mm ² - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 2 cable 0.75...1.5 mm ² - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 2 cable 0.75...1.5 mm ² - cable stiffness: rigid - without cable endPower circuit: screw clamp terminals 1 cable 1...10 mm ² - cable stiffness: rigid - without cable endPower circuit: screw clamp terminals 1 cable 1...6 mm ² - cable stiffness: flexible - with cable endPower circuit: screw clamp terminals 1 cable 2.5...10 mm ² - cable stiffness: flexible - without cable endPower circuit: screw clamp terminals 2 cable 1...6 mm ² - cable stiffness: flexible - with cable endPower circuit: screw clamp terminals 2 cable 1...6 mm ² - cable stiffness: rigid - without cable endPower circuit: screw clamp terminals 2 cable 1.5...6 mm ² - cable stiffness: flexible - without cable end |
| 绝缘直径 | 10 V conforming to IEC 61000-4-6 | 最大瞬时扭矩（oz-in / mNm） | Control circuit: 0.8...1.2 N.m - with screwdriver 5 mm flatControl circuit: 0.8...1.2 N.m - with screwdriver 5 mm Philips no 1Power circuit: 1.9...2.5 N.m - with screwdriver 6 mm flatPower circuit: 1.9...2.5 N.m - with screwdriver 6 mm Philips No 2 |
产品信息
| 类型 | 电源底座 | 用途 | AC-41AC-43AC-44 |
| 系列 | U-Line | 持续时间 | 15 ms for DC network |
| 成分 | 2 NO | 产品子类型 | Reversing power base |
| 测量范围 | TeSys U | 可充电 | 1369863 cycles20000000 cycles |
| 行业别名 | 785901202707, LU2B32BL | 设备简称 | LU2B |
| 其他规格 | 650 °C conforming to IEC 60695-2-12960 °C parts supporting live components conforming to IEC 60695-2-12 | ||
环境参数
| 动作时间 | 150 ms with change of direction for power circuit35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM for control circuit70 ms closing with LUCA, LUCB, LUCC, LUCD for control circuit75 ms closing with LUCM for control circuit75 ms without change of direction for power circuit | 机械寿命 | 15000000 cycles |
| 抗冲击能力 | 10 gn power poles open conforming to IEC 60068-2-2715 gn power poles closed conforming to IEC 60068-2-27 | 存储接口 | -40...85 °C |
| 防护等级 | IP20 front panel and wired terminals conforming to IEC 60947-1IP20 other faces conforming to IEC 60947-1IP40 front panel outside connection zone conforming to IEC 60947-1 | 工作压力 | 2000 m |
| 防护处理 | TH conforming to IEC 60068 | 抗振性 | 2 gn 5...300 Hz power poles open conforming to IEC 60068-2-274 gn 5...300 Hz power poles closed conforming to IEC 60068-2-27 |
| 工作温度 | -25...60 °C with LUCM-25...70 °C with LUCA, LUCB, LUCC, LUCD | 热电流 (Ith) | 32 A |
