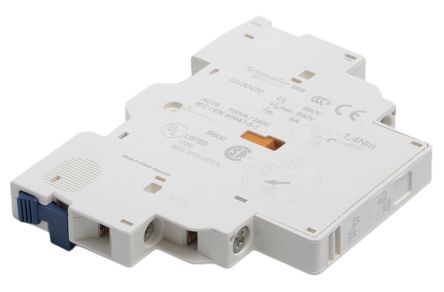

GVAN20
| 制造商 | |
| 描述 | Industrial Relays MAN-START AUX CONTACT 575VAC 1AMP Schneider Electric component GVAN20: TeSys GV2 & GV3 - auxiliary contact block - 2 NO Auxiliary switch 660 V -20...+60 °C IP 2X, GVAN20, Schneider Electric Schneider Electric GVAN 系列 侧面安装 辅助触点 , 螺钉接端, 2 常开, 240 V 直流、690 V 交流 Circuit Breakers MAN-START AUX CONTACT 575VAC 1AMP |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 14 Days | 子类别 | Circuit Protection Misc |
| 工厂包装数量 | 1 | ||
合规参数
| 防护类型 | GB2CB... circuit breaker rating according to operational current for Ue <= 415 VGG fuse <= 10 A | ||
电气参数
| 容量（如电池容量、线径容量等） | 17 V; 5 mA | UL电压 | 48...690 V AC24...240 V DC |
| 额定功率 | 300 VA at 48 V AC-15 - electrical durability: 100000 cycles400 VA at 690 V AC-15 - electrical durability: 100000 cycles500 VA at 110...127 V AC-15 - electrical durability: 100000 cycles500 VA at 500 V AC-15 - electrical durability: 100000 cycles650 VA at 440 V AC-15 - electrical durability: 100000 cycles720 VA at 230...240 V AC-15 - electrical durability: 100000 cycles850 VA at 380...415 V AC-15 - electrical durability: 100000 cycles | 额定电压 | 600 V - conforming to CSA C22-2 No 14600 V - conforming to UL 508690 V - conforming to IEC 60947-1 |
| 额定电压值 | 660 V | 开关电压 | 17 V |
| 开关电流 | 5 mA | 最大功率（瓦特） | 120 W at 240 V DC-13 - electrical durability: 100000 cycles140 W at 110 V DC-13 - electrical durability: 100000 cycles140 W at 24 V DC-13 - electrical durability: 100000 cycles180 W at 60 V DC-13 - electrical durability: 100000 cycles240 W at 48 V DC-13 - electrical durability: 100000 cycles |
| 触点额定值 @ 电压 | 240 V 直流、690 V 交流 | 保护电压（VP）（2416） | IP 2X |
机械参数
| 深度 | 66 mm | 宽度 | 9.3 mm |
| 高度 | 89 mm | 长度 | 66 mm |
| 重量 | 0.05 kg | 包装方式 | Bulk |
| 第一连接器 | Screw clamp terminals 1 cable 1...2.5 mm ² - cable stiffness: solidScrew clamp terminals 2 cable 1...2.5 mm ² - cable stiffness: solidScrew clamp terminals 1 cable 0.75...2.5 mm ² - cable stiffness: flexible - without cable endScrew clamp terminals 2 cable 0.75...2.5 mm ² - cable stiffness: flexible - without cable endScrew clamp terminals 2 cable 0.75...1.5 mm ² - cable stiffness: flexible - with cable endScrew clamp terminals 1 cable 0.75...1.5 mm ² - cable stiffness: flexible - with cable end | 致动器类型 | DP |
| 安装类型 | Left side | 连接器类型 | 螺钉 |
| 安装样式 | 侧面安装 | 触头材料 | 2 NO |
| 触点数 | 2 make contacts (NO) | 最大瞬时扭矩（oz-in / mNm） | <= 1.4 N.m - on screw clamp terminals |
产品信息
| 系列 | GVAN | 制造商全称 | Schneider Electric |
| 产品子类型 | Auxiliary contact block | 兼容性 | GV2LGV2LEGV2MEGV2PGV2RTGV3LGV3P |
| 测量范围 | TeSys GV2TeSys GV3 | 行业别名 | 785901212454, GVAN20 |
| 设备简称 | GVAN | 常态配置 | 2 常开 |
环境参数
| 机械寿命 | 100000 cycles | 防护等级 | Normal environment |
| 工作温度 | -20...+60 °C | 热电流 (Ith) | 6 A |
