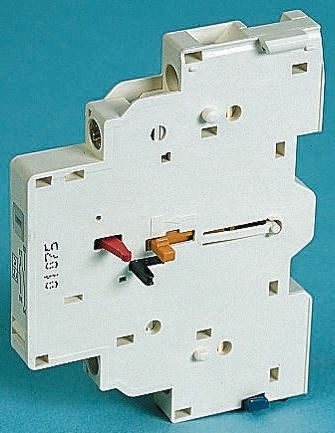

GVAD0101
| 制造商 | |
| 描述 | Industrial Relays 600VAC 600AMP IEC DISCONNECT SWITCH Schneider Electric component GVAD0101: TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NC (fault) Schneider Electric GVAD 系列 侧面安装 辅助触点 , 螺钉接端, 2 常闭, 240 V 直流、690 V 交流 Circuit Breakers 600VAC 600AMP IEC DISCONNECT SWITCH |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 14 Days | 子类别 | Circuit Protection Misc |
合规参数
| 防护类型 | GB2CB... circuit breaker rating according to operational current for Ue <= 415 VGG fuse <= 10 A | ||
电气参数
| UL电压 | 48...690 V AC24...240 V DC | 额定功率 | 300 VA at 48 V AC-15 - electrical durability: 100000 cycles400 VA at 690 V AC-15 - electrical durability: 100000 cycles500 VA at 110...127 V AC-15 - electrical durability: 100000 cycles500 VA at 500 V AC-15 - electrical durability: 100000 cycles650 VA at 440 V AC-15 - electrical durability: 100000 cycles720 VA at 230...240 V AC-15 - electrical durability: 100000 cycles850 VA at 380...415 V AC-15 - electrical durability: 100000 cycles36 VA at 24 V AC-14 - electrical durability: 1000 cycles48 VA at 48 V AC-14 - electrical durability: 1000 cycles72 VA at 110...127 V AC-14 - electrical durability: 1000 cycles |
| 额定电压 | 690 V - conforming to IEC 60947-1300 V - conforming to CSA C22-2 No 14300 V - conforming to UL 508 | 开关电压 | 17 V |
| 开关电流 | 5 mA | 最大功率（瓦特） | 120 W at 240 V DC-13 - electrical durability: 100000 cycles140 W at 110 V DC-13 - electrical durability: 100000 cycles140 W at 24 V DC-13 - electrical durability: 100000 cycles180 W at 60 V DC-13 - electrical durability: 100000 cycles240 W at 48 V DC-13 - electrical durability: 100000 cycles15 W at 48 V DC-13 - electrical durability: 1000 cycles24 W at 24 V DC-13 - electrical durability: 1000 cycles9 W at 60 V DC-13 - electrical durability: 1000 cycles |
| 触点额定值 @ 电压 | 240 V 直流、690 V 交流 | ||
机械参数
| 深度 | 66 mm | 宽度 | 9.3 mm |
| 高度 | 89 mm | 重量 | 0.055 kg |
| 第一连接器 | Screw clamp terminals 1 cable 1...2.5 mm ² - cable stiffness: solidScrew clamp terminals 2 cable 1...2.5 mm ² - cable stiffness: solidScrew clamp terminals 1 cable 0.75...2.5 mm ² - cable stiffness: flexible - without cable endScrew clamp terminals 2 cable 0.75...2.5 mm ² - cable stiffness: flexible - without cable endScrew clamp terminals 2 cable 0.75...1.5 mm ² - cable stiffness: flexible - with cable endScrew clamp terminals 1 cable 0.75...1.5 mm ² - cable stiffness: flexible - with cable end | 致动器类型 | DP |
| 安装类型 | Left side | 连接器类型 | 螺钉 |
| 安装样式 | 侧面安装 | 触头材料 | 2 NC |
| 触点数 | 2 | 最大瞬时扭矩（oz-in / mNm） | <= 1.4 N.m - on screw clamp terminals |
产品信息
| 系列 | GVAD | 功能 | Fault signal 1 NC |
| 制造商全称 | Schneider Electric | 产品子类型 | Auxiliary contact block |
| 兼容性 | GV2LGV2LEGV2MEGV2PGV2RTGV3LGV3P | 测量范围 | TeSys GV2TeSys GV3 |
| 行业别名 | 785901212386, GVAD0101 | 设备简称 | GVAD |
| 常态配置 | 2 常闭 | ||
环境参数
| 机械寿命 | 100000 cycles | 防护等级 | Normal environment |
| 热电流 (Ith) | 6 A2.5 A for fault signalling | ||
