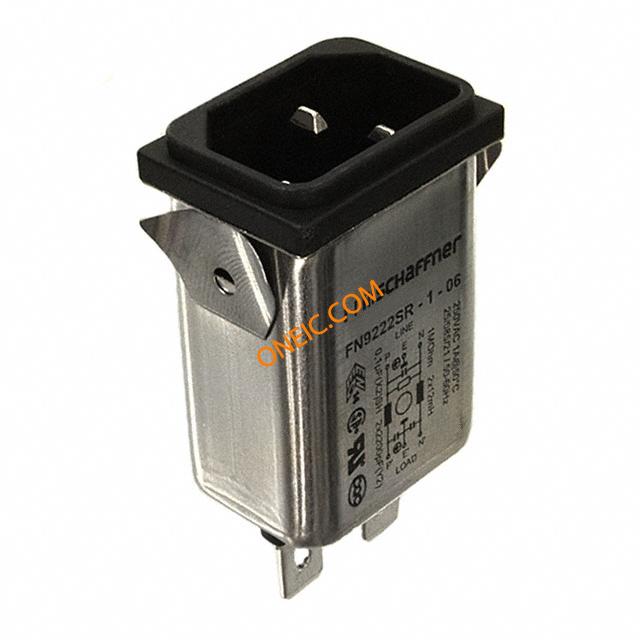

FN9222SR-1-06
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 1A ST 1 Port FILTER PERFORM SNAP-IN INLET 1A AC Power Entry Modules SNAP-IN INLET 1A FILTER PERFORMANCE SINGLEPHASEIEC-INLET1APEM,FASTONSNAP-INWITHRESISTOR |
| 分类 |
商业参数
| 产品 | Inlets | 交货时间 | 84 Days |
| 子类别 | Power Entry Module | 零件号别名 | FN9222SR-10-6 |
| 产品类别 | AC Power Entry Modules | 标准包装数量 | 60 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | 298-266 | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 电流 | 1A | 电压 | 250VAC |
| 频率 | 0 to 400 | 电感量 | 12mH |
| 滤波器类型 | General Purpose | 耐压额定值 | 1000VDC |
| 额定电压 | 250 VAC | 开关功能 | Not Switched |
| 漏电流 | 373μA | 击穿电压 | 1100VDC |
| 最大额定电流 | 1 A | 工作频率 | DCto400Hz |
| 最小输入电压 | 250 | 典型相位噪声 (dBc/Hz) | 1 |
机械参数
| 深度 | 57.9 | 高度 | 22.4 |
| 端接方式 | Spade/Solder | 安装类型 | Straight |
| 连接器类型 | IEC Inlet Filter | 安装样式 | Snap In |
| 保险丝座类型 | Fuse Not Required | 总长度 | 29.9 |
| 主要材料 | ACInlet | 端接样式 | Quick Connect |
| 触点数 | 3 | ||
产品信息
| 类型 | Filtered | 带保险丝 | No |
| 连接器性别 | M | 制造商全称 | FN9222Series |
| 端口数 | 1 | 行业别名 | FN 9222SR-1-06 |
环境参数
| 防护等级 | IP40 | 工作温度 | - 25 C to + 85 C |
